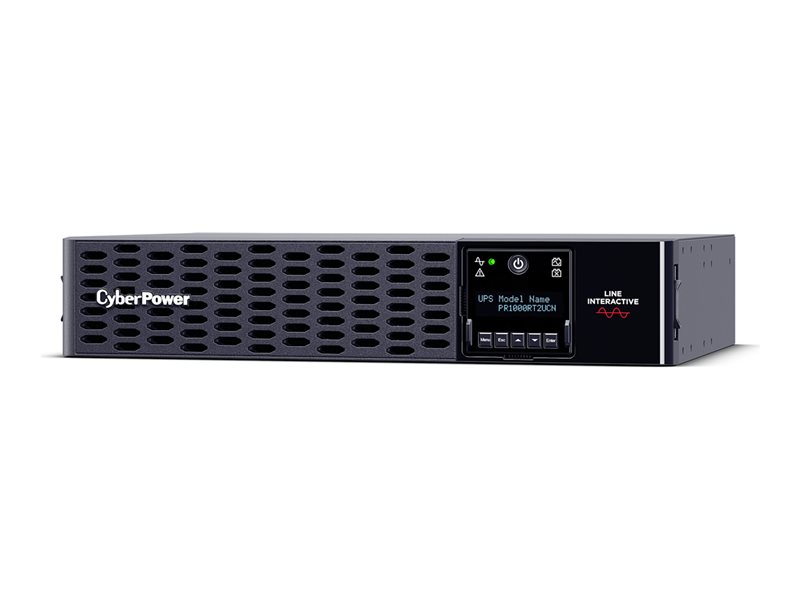

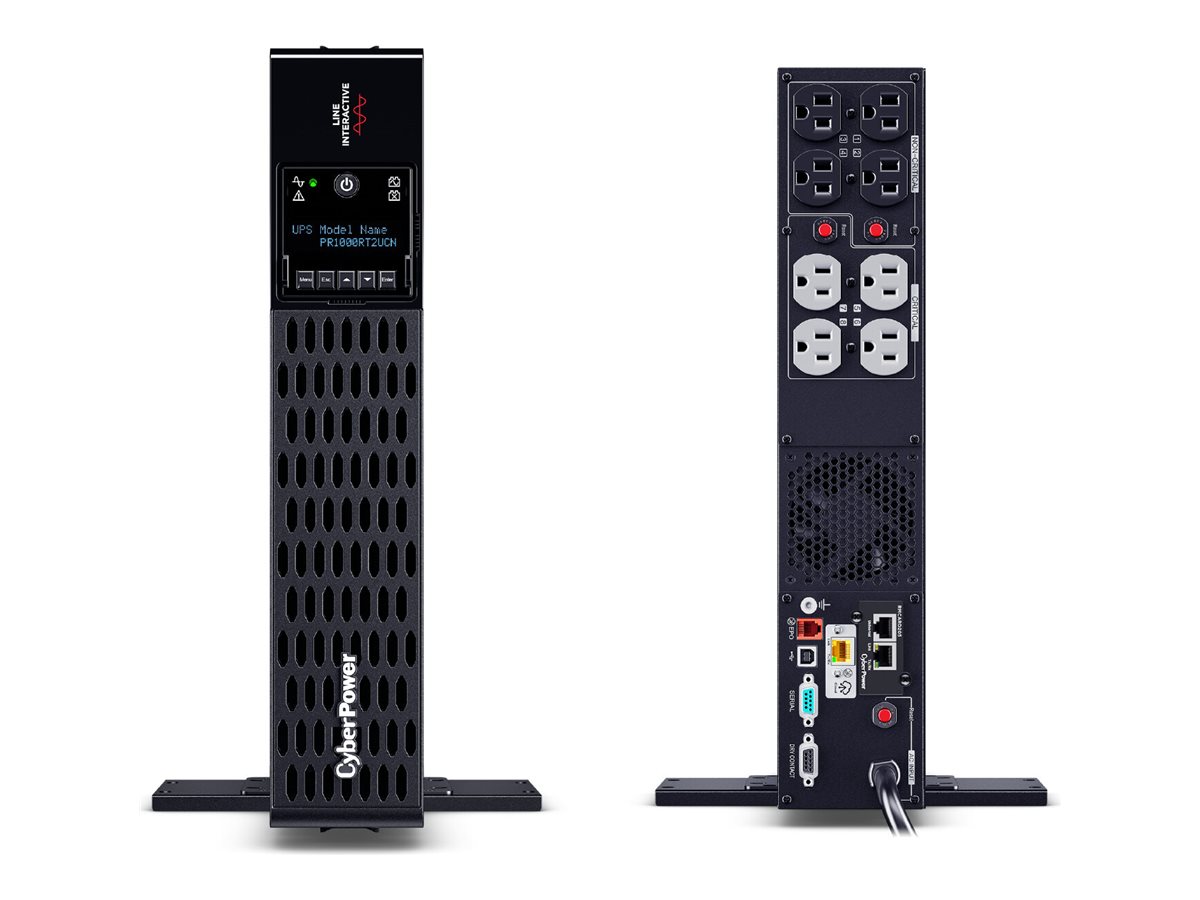

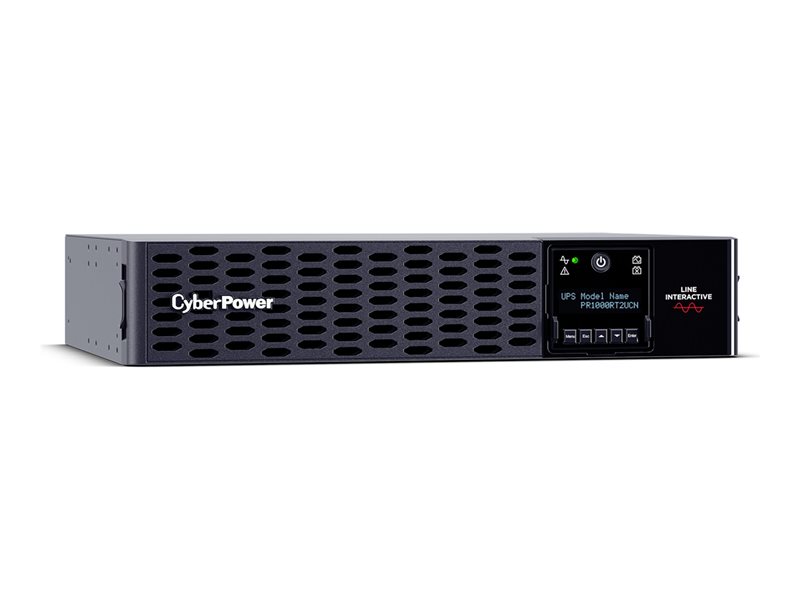

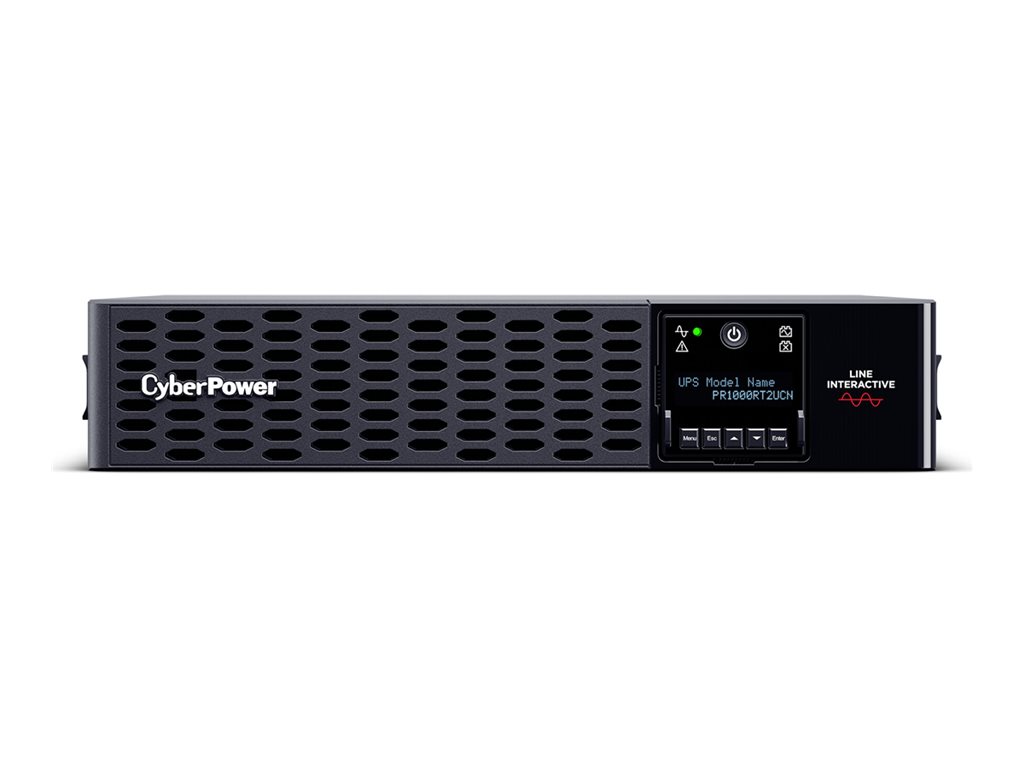

CyberPower - CyberPower Smart App Sinewave PR1000RT2UCN
UPS (rack-mountable / external) - AC 100-125 V - 1000 Watt - 1000 VA - 7 Ah - Ethernet, RS-232, USB - output connectors: 8 - active PFC - 2U - black
CyberPower
PR1000RT2UCN
N/A
0649532935635
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | CyberPower Smart App Sinewave PR1000RT2UCN - UPS - 1000 Watt - 1000 VA |
| Device Type | UPS - active Power Factor Correction (PFC) - rack-mountable / external |
| Rack Size | 2U |
| Weight | 50.09 lbs |
| Input Voltage | AC 100-125 V |
| Output Voltage | AC 100/110/120/125 V ± 5% |
| Power Capacity | 1000 Watt / 1000 VA |
| Input Connectors | 1 x power NEMA 5-15P |
| Output connectors | 8 x power NEMA 5-15R |
| Battery | Lead acid - 7 Ah |
| Batteries Qty | 4 |
| Run Time (Up To) | 7 min at full load |
| Networking | Ethernet, RS-232, USB |
| Remote Management Protocol | SNMP, CLI, Web NMS |
| Included Accessories | Network management card |
| Color | Black |
| Dimensions (WxDxH) | 17.1 in x 16.2 in x 3.4 in |
| Environmental Standards | ENERGY STAR |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | UPS - active Power Factor Correction (PFC) - rack-mountable / external |
| Height (Rack Units) | 2U |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management (USB) - 4 pin USB Type B ¦ 1 x EPO (emergency power off) ¦ 1 x dry contact ¦ 1 x sensor ¦ 2 x management (Ethernet) - RJ-45 ¦ 1 x communication - RJ-45 |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | Network management card |
| Cables Included | Power cable - external - 10 ft ¦ USB cable - external ¦ Serial cable - external ¦ Emergency power off cable - external |
| Rack Mounting Kit | Included |
| Equipment Protection Value | 400000 US Dollars |
| Features | Metal housing, emergency power off, LCD display, Automatic Voltage Regulation (AVR), LED indicators, overload protection, reset breaker, PFC function, rotatable LCD panel, GreenPower UPS Bypass Technology, Fast Charge technology, Human Interface Device (HID) support, internal current limiting, color-coded labels, Impedance Tolerant EMI/RFI filtering |
| Compliant Standards | FCC Class B certified, VCCI, UL 1778, RoHS, CSA C22.2 No. 107.3, DOE |
| Networking | |
| Remote Management Interface | Ethernet, RS-232, USB |
| Remote Management Protocol | SNMP, CLI, Web NMS |
| Software / System Requirements | |
| Software Included | PowerPanel Business Edition |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Battery | |
| Quantity | 4 |
| Technology | Lead acid |
| Voltage Provided | 12 V |
| Capacity | 7 Ah |
| Run Time (Up To) | 19.5 min at half load ¦ 7 min at full load |
| Recharge Time | 3 hours |
| Transfer Time | 4 ms |
| Features | Sealed, hot-swappable |
| Power Device | |
| UPS Technology | Line interactive |
| Input Voltage | AC 100-125 V |
| Input Voltage Range | AC 75 - 149 V |
| Input Voltage Range (Adjustable) | AC 70 - 155 V |
| Frequency Provided | 50/60 Hz ± 1% |
| Input Voltage Margin | ± 5% |
| Frequency Required | 47 - 63 Hz |
| Input Connectors | 1 x power NEMA 5-15P |
| Power Output Connectors Details | 8 x power NEMA 5-15R |
| Output Voltage | AC 100/110/120/125 V ± 5% - 50/60 Hz |
| Power Capacity | 1000 Watt / 1000 VA |
| Dataline Surge Protection | Network - RJ-45 - 1 input line / 1 output line |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Surge Energy Rating | 2430 Joules |
| Circuit Protection | Circuit breaker |
| Dimensions & Weight | |
| Width | 17.1 in |
| Depth | 16.2 in |
| Height | 3.4 in |
| Weight | 50.09 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 21 in |
| Shipping Depth | 22 in |
| Shipping Height | 10.5 in |
| Shipping Weight | 58 lbs |
| Sustainability Information | |
| ENERGY STAR | Yes |
