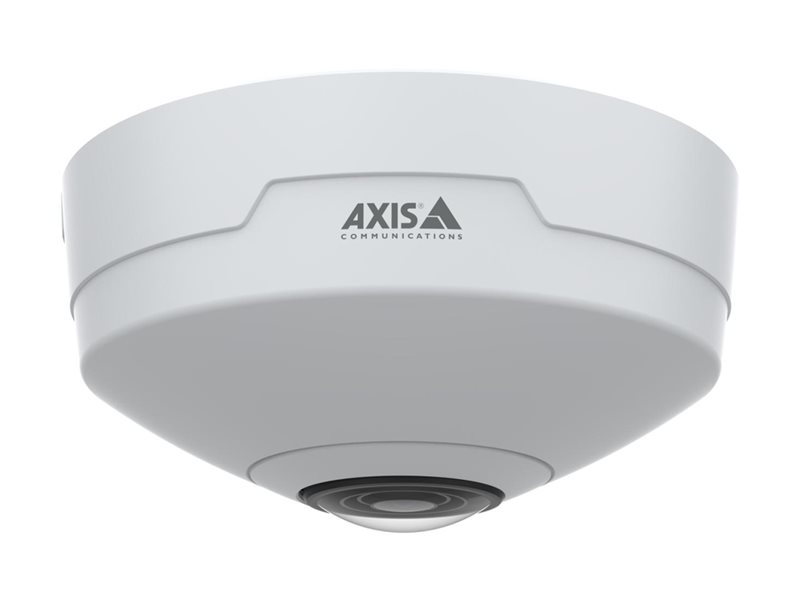

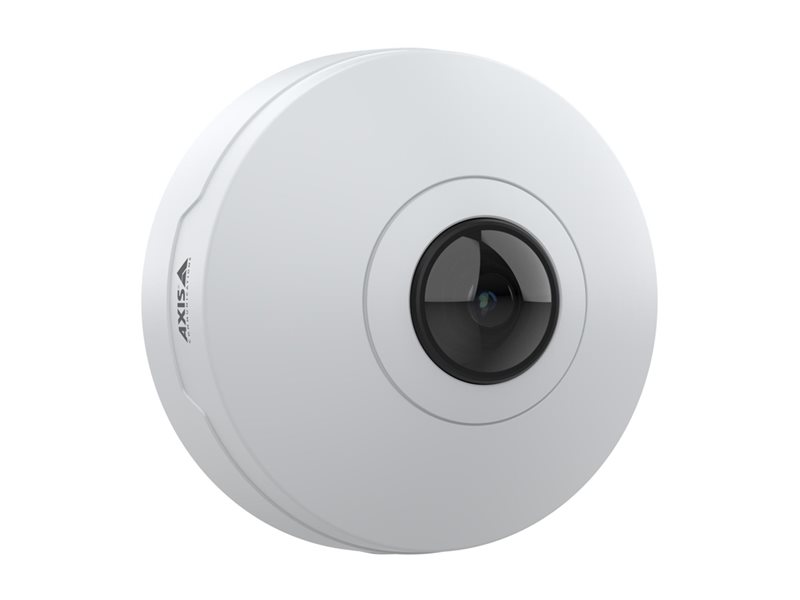

Axis Communications - AXIS M43 Series M4327-P
Network panoramic camera - fisheye - indoor - color (Day&Night) - 6 MP - 2160 x 2160 - fixed iris - fixed focal - audio - LAN 10/100 - MJPEG, H.264, H.265 - PoE Class 3 - TAA Compliant
Axis Communications
02636-004
N/A
7331021081451
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | AXIS M43 Series M4327-P - network panoramic camera - fisheye - TAA Compliant |
| Device Type | Network panoramic camera - fixed - fisheye - indoor |
| Audio | Yes: two-way audio capability |
| Dimensions (WxDxH) | 4 in x 4 in x 2 in |
| Weight | 10.58 oz |
| Color | White, NCS S 1002-B |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Max Resolution | 2160 x 2160 |
| Optical Sensor Type | PS RGB CMOS - 1/1.8" - 6 MP |
| Minimum Illumination | 0.16 lux - color - F2.2 - 50 IRE ¦ 0.03 lux - B&W - F2.2 - 50 IRE |
| Focal Length Control | Fixed focal |
| Focal Length | 1.1 mm |
| Focus Adjustment | Fixed focus |
| Lens Iris | F/2.2 - fixed iris |
| Interfaces | Ethernet 10Base-T/100Base-TX |
| Voltage | PoE Class 3 |
| Features | 180° panoramic view mode, 360° panoramic capture, stereographic lens, digital PTZ function, IR Corrected lens, infrared cut filter, digital roll, deep learning processing unit (DLPU), 16:9 aspect ratio, 16:10 aspect ratio, 4:3 aspect ratio, Zipstream technology, Forensic WDR, Variable Bitrate (VBR), Multi-Bitrate (MBR), Adaptive Bitrate (ABR), video streaming indicator, 2D digital noise reduction (DNR), 3D digital noise reduction (DNR), saturation control, contrast control, brightness control, sharpness control, tone mapping, white balance, day/night shift level, exposure mode, exposure zone, compression, image mirror, dynamic text overlay, image overlay, polygon privacy mask, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, AXIS Object Analytics, active tampering alarm, secure boot, signed firmware, network speaker pairing, plastic housing |
| TAA Compliant | Yes |
| Manufacturer Warranty | 5-year warranty |
| Environmental Parameters (operating) | 32 °F - 104 °F; 10 - 85% RH (non-condensing) relative humidity |
| General | |
| Device Type | Network panoramic camera |
| Audio Support | Yes: two-way audio capability |
| Form Factor | Fisheye |
| Connectivity Technology | Wired |
| Width | 4 in |
| Depth | 4 in |
| Height | 2 in |
| Weight | 10.58 oz |
| Localization | United States |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | SD Memory Card, SDXC Memory Card, SDHC Memory Card |
| Encryption Algorithm | EAP-TLS, PEAP, MSCHAPv2, TLS 1.2, TLS 1.3 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Included Accessories | Owner authentication key |
| TAA Compliant | Yes |
| Compliant Standards | CSA, UL, cUL, BIS, UKCA, KC, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, AS/NZS CISPR 32 Class A, ICES-3(A)/NMB-3(A), VCCI Class A, KS C 9835, KS C 9832 Class A, FCC Part 15 B Class A, CAN/CSA C22.2 No. 62368-1 Third Edition, IEC/EN/UL 62368-1, IS 13252, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, NIST SP500-267, ETSI EN 303 645, IEEE 802.1x, IEEE 802.1ae, IEEE 802.1ar, X.509, IEEE 802.3af, IEEE 802.3at, PVC-free, BFR-free, CFR free, JEDEC, ECA, REACH 1907/2006/CE, RoHS 2011/65/EU, EN 63000:2018 |
| Color | White, NCS S 1002-B |
| Power | |
| Power Requirements | PoE Class 3 |
| Power Device | 3.5 Watt |
| Software / System Requirements | |
| Software Included | AXIS Video Motion Detection |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Relative Humidity (operating) | 10 - 85% RH (non-condensing) |
| Camera | |
| Type | Color - Day&Night - fixed - indoor |
| Digital Video Format | MJPEG, H.264, H.265 |
| Max Digital Video Resolution | 2160 x 2160 |
| Exposure Range | 1/5 sec - 1/33500 sec |
| Minimum Illumination | 0.16 lux - color - F2.2 - 50 IRE ¦ 0.03 lux - B&W - F2.2 - 50 IRE |
| Digital Video Capture Resolution | 2160 x 2160, 2560 x 1440, 160 x 160, 192 x 72, 2560 x 1920, 256 x 192, 1920 x 1440, 256 x 144, 2368 x 1184 |
| RAM | 2 GB |
| Flash Memory | 8 GB |
| Features | 180° panoramic view mode, 360° panoramic capture, stereographic lens, digital PTZ function, IR Corrected lens, infrared cut filter, digital roll, deep learning processing unit (DLPU), 16:9 aspect ratio, 16:10 aspect ratio, 4:3 aspect ratio, Zipstream technology, Forensic WDR, Variable Bitrate (VBR), Multi-Bitrate (MBR), Adaptive Bitrate (ABR), video streaming indicator, 2D digital noise reduction (DNR), 3D digital noise reduction (DNR), saturation control, contrast control, brightness control, sharpness control, tone mapping, white balance, day/night shift level, exposure mode, exposure zone, compression, image mirror, dynamic text overlay, image overlay, polygon privacy mask, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, AXIS Object Analytics, active tampering alarm, secure boot, signed firmware, network speaker pairing, plastic housing |
| Lens Construction | |
| Type | Fixed focal |
| Focal Length | 1.1 mm |
| Lens Iris | F/2.2 fixed iris |
| Focus Adjustment | Fixed focus |
| Horizontal Field of View (degree) | 182 |
| Vertical Field of View (degree) | 182 |
| Image Sensor | |
| Type | 6 MP PS RGB CMOS 1/1.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | IPv4, IPv6, USGv6, ICMP, HTTPS, HTTP, TLS, QOS, FTP, SFTP, CIFS, SMB, SMTP, MDNS, Bonjour, UPnP, SNMP, DNS, DDNS, NTP, NTS, RTSP, RTP, SRTP, TCP/IP, UDP/IP, IGMP, RTCP, DHCP, SSH, LLDP, CDP, MQTT, Syslog, Zeroconf, SIP |
