Synology - Synology SA3610
NAS server - 12 bays - rack-mountable - SATA 6Gb/s / SAS - RAID RAID F1, JBOD, RAID 0, 1, 5, 6, 10 - RAM 16 GB - Gigabit Ethernet / 10 Gigabit Ethernet - iSCSI support - 2U
Synology
SA3610
N/A
0846504005031
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Synology SA3610 - NAS server |
| Device Type | NAS server |
| Host Connectivity | Gigabit Ethernet / 10 Gigabit Ethernet |
| Enclosure Type | Rack-mountable - 2U |
| Max Supported Capacity | 1.728 PB |
| Installed Devices / Modules Qty | 0 (installed) / 12 (max) |
| Dimensions (WxDxH) | 16.9 in x 27.2 in x 3.5 in |
| Weight | 31.97 lbs () |
| Processor | 1 x Intel Xeon D-1567 2.1 GHz (12-core) |
| Storage Controller | RAID SATA 6Gb/s / SAS RAID RAID F1, JBOD, RAID 0, 1, 5, 6, 10 |
| Networking | 10Mb LAN, 100Mb LAN, 1GbE, 10GbE |
| Performance | Sequential read: 6275 Mbps ¦ Sequential write: 3056 Mbps ¦ Random read: 450814 IOPS ¦ Random write: 122675 IOPS ¦ Local user account: 16000 ¦ Local group account: 512 ¦ Maximum number of shared folders: 512 ¦ Maximum concurrent connections: 4000 |
| RAM | 16 GB |
| Power | AC 100-240 V (50/60 Hz) |
| Power Redundancy | Yes |
| Storage Operating System | Synology DiskStation Manager |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | NAS server |
| Host Connectivity | Gigabit Ethernet / 10 Gigabit Ethernet |
| Enclosure Type | Rack-mountable - 2U |
| Total Storage Capacity | 0 TB |
| Max Supported Capacity | 1.728 PB |
| Installed Devices / Modules Qty | 0 (installed) / 12 (max) |
| Width | 16.9 in |
| Depth | 27.2 in |
| Height | 3.5 in |
| Weight | 31.97 lbs () |
| Built-in Devices | LED panel |
| Expansion / Connectivity | |

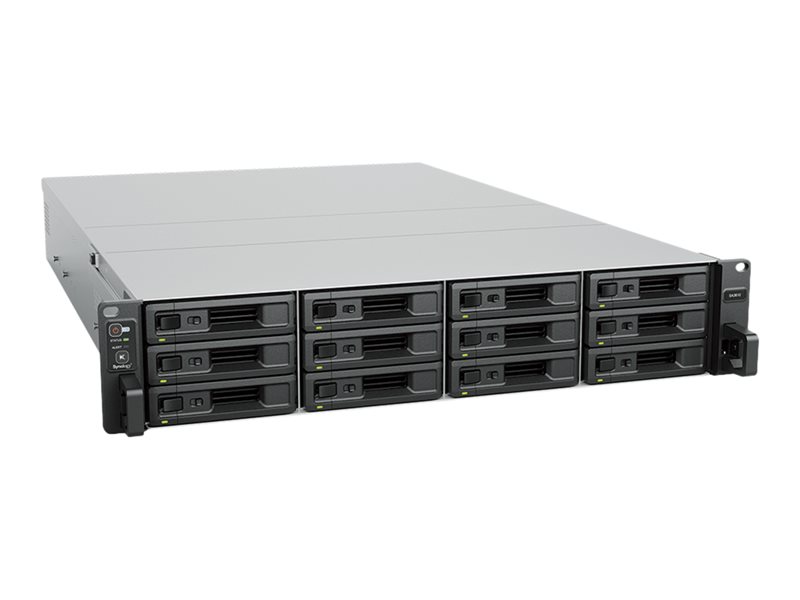

| Expansion Bays | 12 (total) / 12 (free) x hot-swap - 2.5" / 3.5" |
| Expansion Slots | 2 (total) / 2 (free) x PCI Express 3.0 x8 ¦ X M.2 |

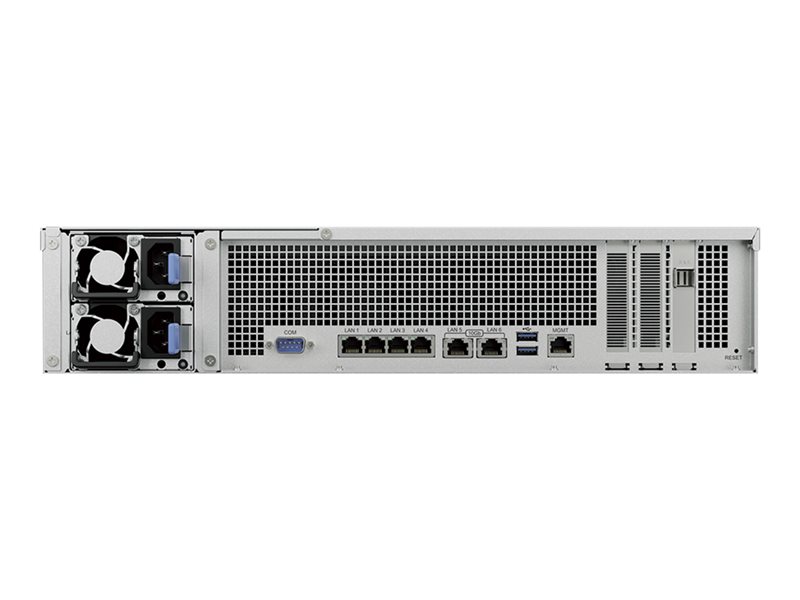

| Interfaces | 2 x USB 3.2 Gen 1 - Type A ¦ 1 x expansion port - Mini-SAS HD (SFF-8644) ¦ 1 x Ethernet 1000Base-T (management) - RJ-45 ¦ 2 x Ethernet 10Gb - RJ-45 ¦ 4 x Ethernet 1000Base-T - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Features | Scheduled power on/off, built-in 4 x 80 mm cooling fans |
| Compliant Standards | RoHS |
| Included Accessories | Accessory pack, 2 x power cables |
| Networking | |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE, 10GbE |
| Network / Transport Protocol | SMB, NFS, FTP, iSCSI, PPTP, L2TP, OpenVPN |
| Remote Management Protocol | Telnet, SSH, SNMP, LDAP |
| Network Services Compatibility | Apple File Protocol (AFP), Network File System (NFS), FTP, Web-based Distributed Authoring and Versioning (WebDAV), Calendaring Extensions to WebDAV (CalDAV), File Level Security (ACLs) |
| Performance | Sequential read: 6275 Mbps ¦ Sequential write: 3056 Mbps ¦ Random read: 450814 IOPS ¦ Random write: 122675 IOPS ¦ Local user account: 16000 ¦ Local group account: 512 ¦ Maximum number of shared folders: 512 ¦ Maximum concurrent connections: 4000 |
| Features | Wake on WAN (WOW), wake on LAN (WOL), VPN support, B-tree file system (Btrfs), EXT4 file system, SSD read-write cache, Kubernetes support, firewall protection, Let's Encrypt, login auto block, Rsync compatible, shared folder encryption, SMB encryption |
| Encryption Algorithm | SSL, TLS |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Software / System Requirements | |
| Storage Operating System | Synology DiskStation Manager |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 8 - 80% RH |
| Storage Controller | |
| Type | RAID |
| Interface Type | SATA 6Gb/s / SAS |
| RAID Level | RAID F1, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |
| Processor / Memory | |
| Processors Installed | 1 x Intel Xeon D-1567 2.1 GHz |
| Number of Cores | 12-core |
| Max Supported Qty | 1 |
| Max Turbo Speed | 2.7 GHz |
| RAM | 16 GB (installed) / 128 GB (supported) - DDR4 |
| Features | Registered, ECC |
