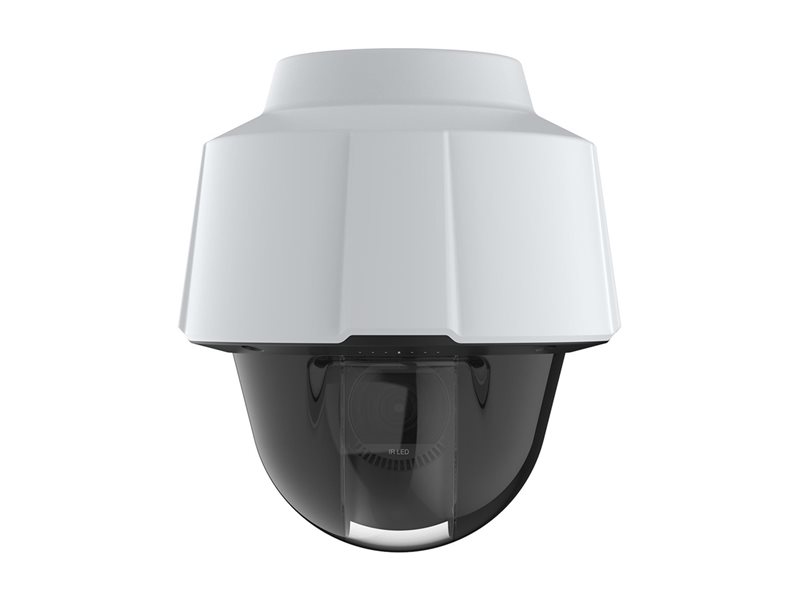

Axis Communications - AXIS P5676-LE
Network surveillance camera - PTZ - outdoor, indoor - vandal-resistant - color (Day&Night) - 4 MP - 2688 x 1512 - auto iris - motorized - audio - LAN 10/100 - H.264B, H.264M, H.264H, H.265, MJPEG - DC 20 - 28 V / AC 20 - 24 V / PoE Class 6
Axis Communications
02414-001
N/A
7331021076945
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | AXIS P5676-LE - network surveillance camera |
| Device Type | Network surveillance camera - pan / tilt / zoom - outdoor, indoor - vandal-resistant |
| Audio | Yes: two-way audio capability |
| Dimensions (WxDxH) | 8.1 in x 8.1 in x 9.5 in |
| Weight | 5.51 lbs |
| Color | White, NCS S 1002-B |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Optical Zoom | 30 x |
| Max Resolution | 2688 x 1512 |
| Frame Rate (max) | 50 frames per second |
| Motion Detection | Yes |
| Optical Sensor Type | PS RGB CMOS - 1/2.9" - 4 MP |
| Minimum Illumination | 0.1 lux - color - F1.6 - 30 IRE ¦ 0.01 lux - B&W - F1.6 - 30 IRE ¦ 0.11 lux - color - F1.6 - 50 IRE ¦ 0.03 lux - B&W - F1.6 - 50 IRE ¦ 0 lux - IR |
| Focal Length Control | Motorized zoom |
| Focal Length | 4.5 mm - 135 mm |
| Focus Adjustment | (min distance 4.3 ft) |
| Lens Iris | F/1.6-4.6 - auto iris (P-Iris) |
| Panning Range (degree) | 360 |
| Tilting Range (degree) | 0 to 90 |
| Interfaces | Ethernet 10Base-T/100Base-TX |
| Voltage | DC 20 - 28 V / AC 20 - 24 V / PoE Class 6 |
| Features | Infrared-cut filter, 256 preset positions, control queue, focus recall, guard tour, Nadir flip, on-screen directional indicator, set new pan 0°, spot focus, Machine learning processing unit (MLPU), Adaptive Bitrate (ABR), brightness control, compression, contrast control, defogging, exposure control, exposure zone, Forensic WDR, low latency mode, Multi-Bitrate (MBR), saturation control, sharpness control, Variable Bitrate (VBR), video streaming indicator, white balance, Zipstream technology, day/night shift level, 180° image rotation, barrel distortion correction, electronic image stabilization, fine tuning of behavior at low light, image freeze, tone mapping, 20 individual polygon and mosaic privacy masks, orientation aid PTZ, target aperture, network speaker pairing, auto gain control, HTTPs encryption, IP address filtering, centralized certificate management, user access log, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, VAPIX support, Pixel Counter Support, Audio Detection, autotracking 2, Axis device ID, Axis Edge Vault, brute force delay protection, digest authentication, password protection, secure boot, signed firmware, signed video, OptimizedIR, memory card encryption, Lightfinder 2.0 technology, shock detection, Advanced Gatekeeper |
| Manufacturer Warranty | 5-year warranty |
| Environmental Parameters (operating) | -22 °F - 122 °F; 10 - 100% RH (condensing) relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Audio Support | Yes: two-way audio capability |
| Audio Formats | LPCM, AAC-LC, G.711, PCM, G.726, ADPCM, OPUS |
| Connectivity Technology | Wired |
| Width | 8.1 in |
| Depth | 8.1 in |
| Height | 9.5 in |
| Weight | 5.51 lbs |
| Localization | United States, Korea, Japan, Brazil |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 ¦ Audio line-in/microphone ¦ Audio line out |
| Supported Memory Cards | SD Memory Card, SDHC Memory Card, SDXC Memory Card |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Included Accessories | RJ45 push-pull connector |
| Compliant Standards | IEEE 802.1x, EAL 4+, IEEE 802.1ar, X.509, IEEE 802.3bt, CISPR 35, CISPR 32 Class A, EN 55032 Class A, EN 55035, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, ICES-3(A)/NMB-3(A), VCCI Class A, KS C 9835, KS C 9832 Class A, FCC Part 15 B Class A, IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1 Third Edition, IEC 62471, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 62262 IK10, NEMA250 Type 4X, NEMA TS-2 (2.2.7-2.2.9), ISO 21207 method B, NIST SP500-267, PVC-free, RoHS 2011/65/EU, EN 63000:2018, REACH 2006/1907 |
| Color | White, NCS S 1002-B |
| Power | |
| Power Requirements | DC 20 - 28 V / AC 20 - 24 V / PoE Class 6 |
| Power Device | 13 Watt |
| Software / System Requirements | |
| Software Included | AXIS Object Analytics, AXIS Video Motion Detection, Windows decoder 1-user license |
| Environmental Parameters | |
| Min Operating Temperature | -22 °F |
| Max Operating Temperature | 122 °F |
| Relative Humidity (operating) | 10 - 100% RH (condensing) |
| Camera | |
| Type | Color - Day&Night - pan / tilt / zoom - outdoor, indoor - vandal-resistant |
| Digital Video Format | H.264B, H.264M, H.264H, H.265, MJPEG |
| Max Digital Video Resolution | 2688 x 1512 |
| Motion Detection | Yes |
| Digital Zoom | 12 |
| Exposure Range | 1/5 sec - 1/50000 sec |
| Minimum Illumination | 0.1 lux - color - F1.6 - 30 IRE ¦ 0.01 lux - B&W - F1.6 - 30 IRE ¦ 0.11 lux - color - F1.6 - 50 IRE ¦ 0.03 lux - B&W - F1.6 - 50 IRE ¦ 0 lux - IR |
| Infrared LEDs | Yes |
| Digital Video Capture Resolution | 2688 x 1512, 320 x 180 |
| Frame Rate (max) | 50 frames per second |
| RAM | 1 GB |
| Flash Memory | 512 MB |
| Features | Infrared-cut filter, 256 preset positions, control queue, focus recall, guard tour, Nadir flip, on-screen directional indicator, set new pan 0°, spot focus, Machine learning processing unit (MLPU), Adaptive Bitrate (ABR), brightness control, compression, contrast control, defogging, exposure control, exposure zone, Forensic WDR, low latency mode, Multi-Bitrate (MBR), saturation control, sharpness control, Variable Bitrate (VBR), video streaming indicator, white balance, Zipstream technology, day/night shift level, 180° image rotation, barrel distortion correction, electronic image stabilization, fine tuning of behavior at low light, image freeze, tone mapping, 20 individual polygon and mosaic privacy masks, orientation aid PTZ, target aperture, network speaker pairing, auto gain control, HTTPs encryption, IP address filtering, centralized certificate management, user access log, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, VAPIX support, Pixel Counter Support, Audio Detection, autotracking 2, Axis device ID, Axis Edge Vault, brute force delay protection, digest authentication, password protection, secure boot, signed firmware, signed video, OptimizedIR, memory card encryption, Lightfinder 2.0 technology, shock detection, Advanced Gatekeeper |
| Lens Construction | |
| Type | Motorized zoom |
| Optical Zoom | 30 x |
| Focal Length | 4.5 mm - 135 mm |
| Lens Iris | F/1.6-4.6 auto iris (P-Iris) |
| Min Focus Distance | 4.3 ft |
| Horizontal Field of View (degree) | 2.1 - 57.1 |
| Vertical Field of View (degree) | 1.2 - 34.4 |
| Image Sensor | |
| Type | 4 MP PS RGB CMOS 1/2.9" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | IPv4, IPv6, USGv6, ICMP, HTTP, HTTPS, TLS, QOS, FTP, SFTP, CIFS, SMB, SMTP, Bonjour, UPnP, SNMP 1, SNMP 2c, SNMP 3, DNS, DDNS, NTP, RTSP, RTCP, RTP, SRTP, TCP/IP, UDP/IP, IGMP, IGMPv2, IGMPv3, DHCP, ARP, SSH, NTCIP, LLDP, CDP, MQTT, Syslog, Zeroconf |
| Panning | |
| Range (degree) | 360 |
| Speed (degree/sec) | Up to 350 |
| Tilting | |
| Range (degree) | 0 to 90 |
| Speed (degree/sec) | Up to 350 |
