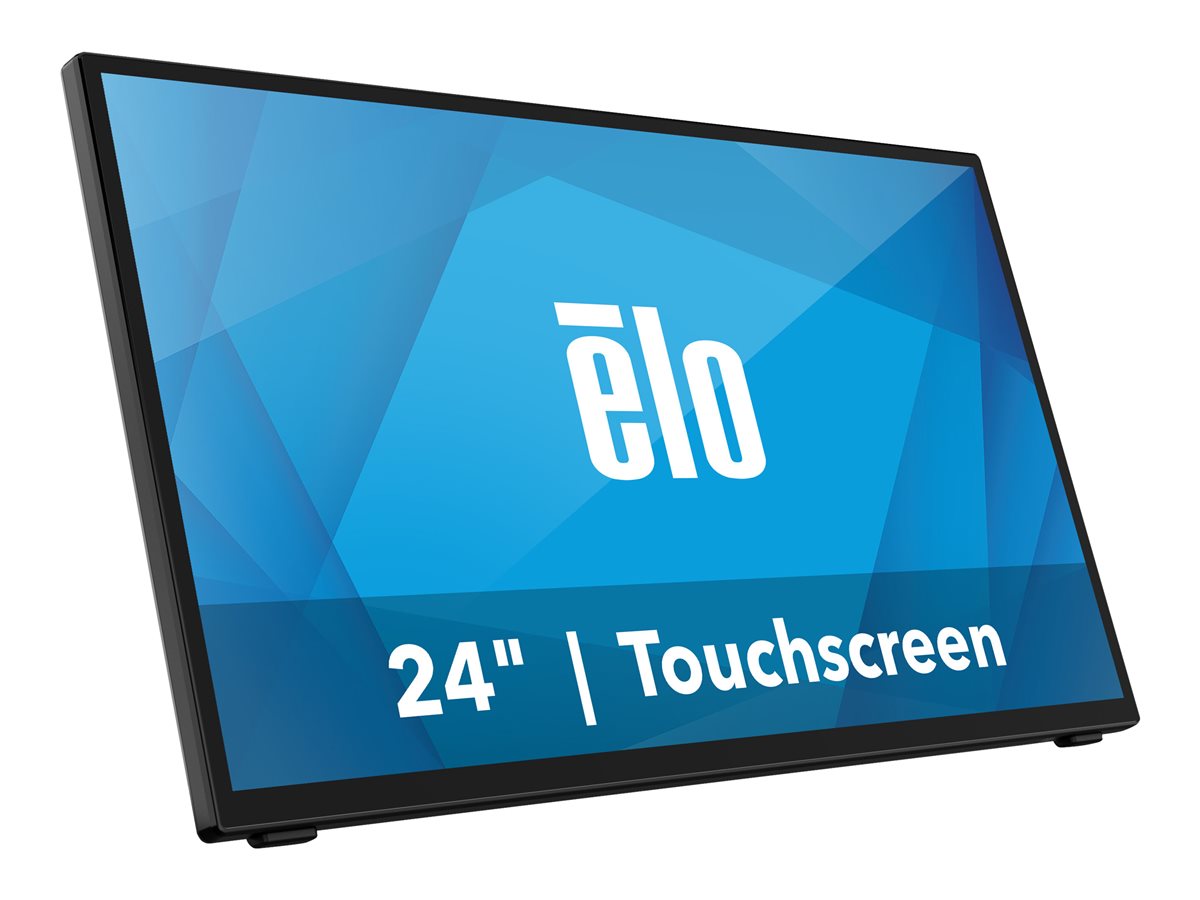

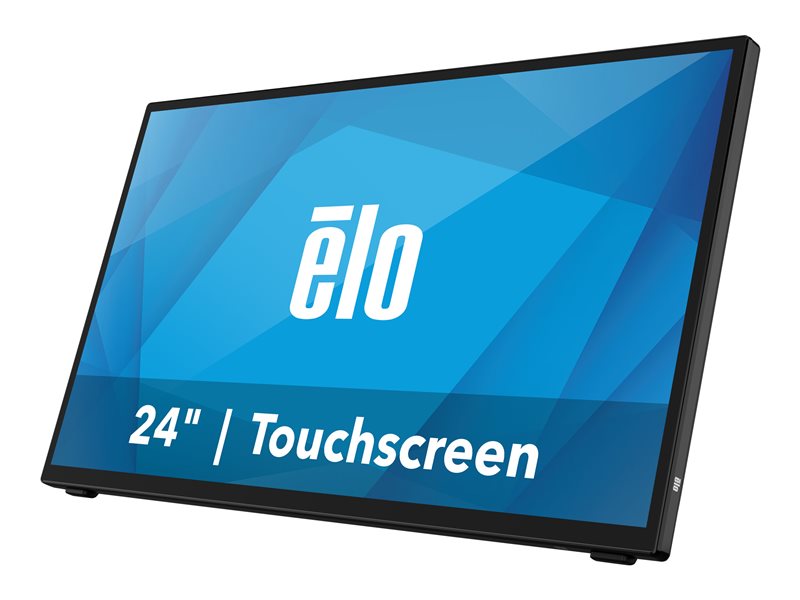

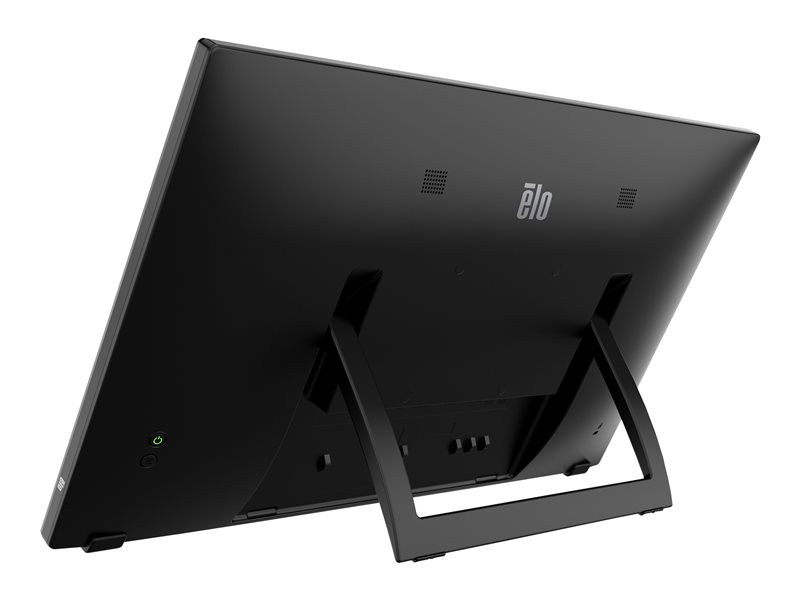

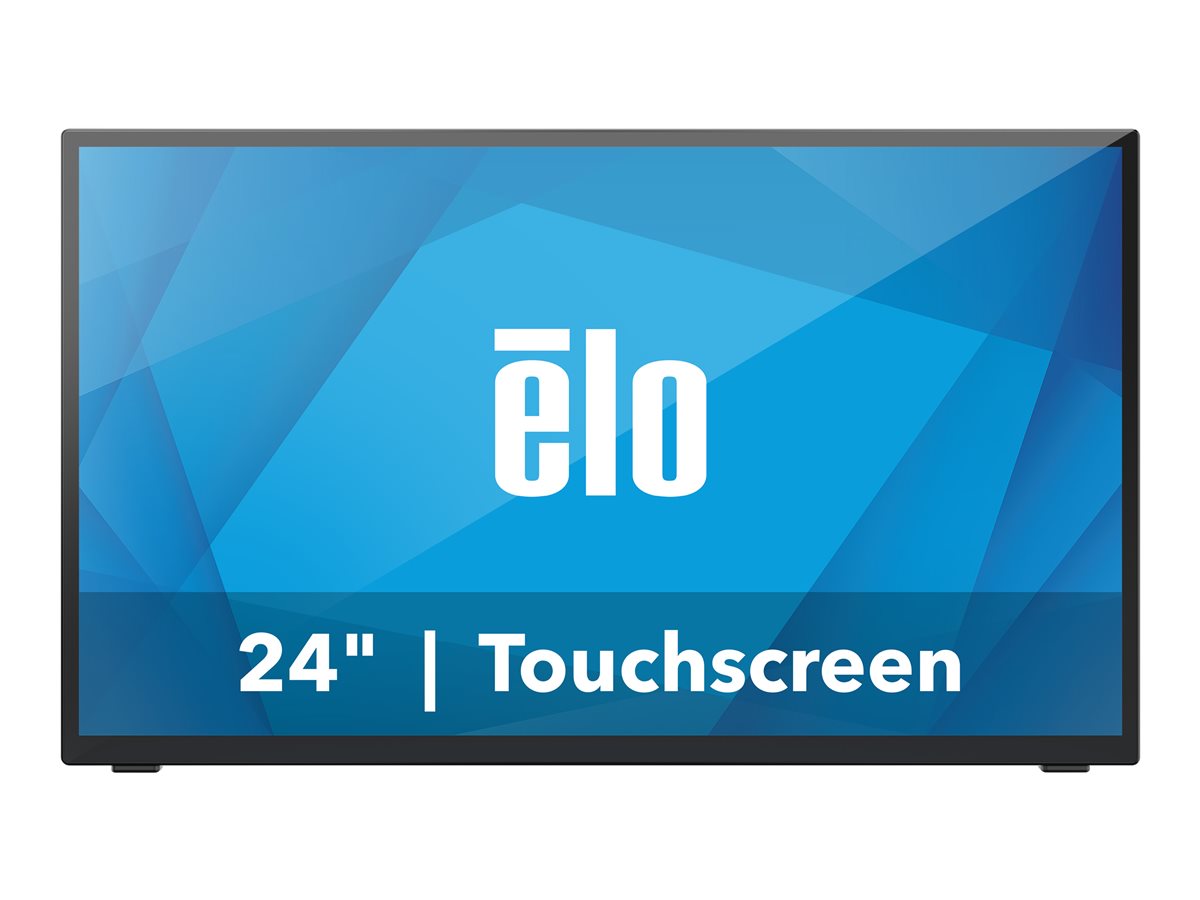

Elo Touch Solutions - Elo 2470L
LCD monitor - 24" (23.8" viewable) - touchscreen - 1920 x 1080 Full HD (1080p) @ 60 Hz - 250 cd/m² - 1000:1 - 16 ms - HDMI, VGA, DisplayPort - speakers - black
Elo Touch Solutions
E510459
N/A
0843173131498
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Elo 2470L - LCD monitor - Full HD (1080p) - 24" |
| Device Type | LCD monitor - 24" - touchscreen |
| Features | Touchscreen |
| Aspect Ratio | 16:9 |
| Native Resolution | Full HD (1080p) 1920 x 1080 at 60 Hz |
| Brightness | 250 cd/m² |
| Contrast Ratio | 1000:1 |
| Response Time | 16 ms |
| Color Support | 16.7 million colors |
| Input Connectors | HDMI, VGA, DisplayPort |
| Color | Black |
| Dimensions (WxDxH) - without stand | 21.7 in x 13 in x 1.6 in |
| Weight | 10.58 lbs |
| Compliant Standards | UL, VCCI, BSMI, cUL, CB, CCC, IC, FCC, RoHS, KCC, WEEE, REACH, EAC, China RoHS, RCM, CoC |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Display Type | LCD monitor / TFT active matrix |
| Diagonal Size | 24" |
| Viewable Size | 23.8" |
| Aspect Ratio | 16:9 |
| Native Resolution | Full HD (1080p) 1920 x 1080 at 60 Hz |
| Brightness | 250 cd/m² |
| Brightness w/touchscreen | 225 cd/m² |
| Contrast Ratio | 1000:1 |
| Color Support | 16.7 million colors |
| Response Time | 16 ms |
| Vertical Refresh Rate | 50 - 75 Hz |
| Horizontal Refresh Rate | 30 - 82 kHz |
| Horizontal Viewing Angle | +89 / -89 |
| Vertical Viewing Angle | +89 / -89 |
| Color | Black |
| Dimensions (WxDxH) | 21.7 in x 13 in x 1.6 in - without stand |
| Weight | 10.58 lbs |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included | 1 x VGA cable ¦ 1 x HDMI cable ¦ 1 x USB cable |
| MTBF | 50,000 hours |
| Compliant Standards | UL, VCCI, BSMI, cUL, CB, CCC, IC, FCC, RoHS, KCC, WEEE, REACH, EAC, China RoHS, RCM, CoC |
| Power | |
| Power Consumption (Typical) | 16.7 Watt |
| Power Consumption Stand by | 14.5 Watt |
| Power Consumption Sleep | 0.5 Watt |
| Power Consumption (Off Mode) | 0.16 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| Audio | |
| Type | Speakers - stereo |
| Output Power / Channel | 2 Watt |
| Connectivity | |
| Interfaces | HDMI ¦ VGA ¦ Audio line-out ¦ USB 2.0 (Type B) ¦ 2 x USB 2.0 (Type A) |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 24.8 in |
| Shipping Depth | 5.4 in |
| Shipping Height | 16.5 in |
| Shipping Weight | 15.65 lbs |
| Input | |
| Type | Touchscreen - touchscreen |
| Movement Detection Technology | Projected capacitive |
| Mechanical | |
| VESA Mounting Interface | 100 x 100 mm |
