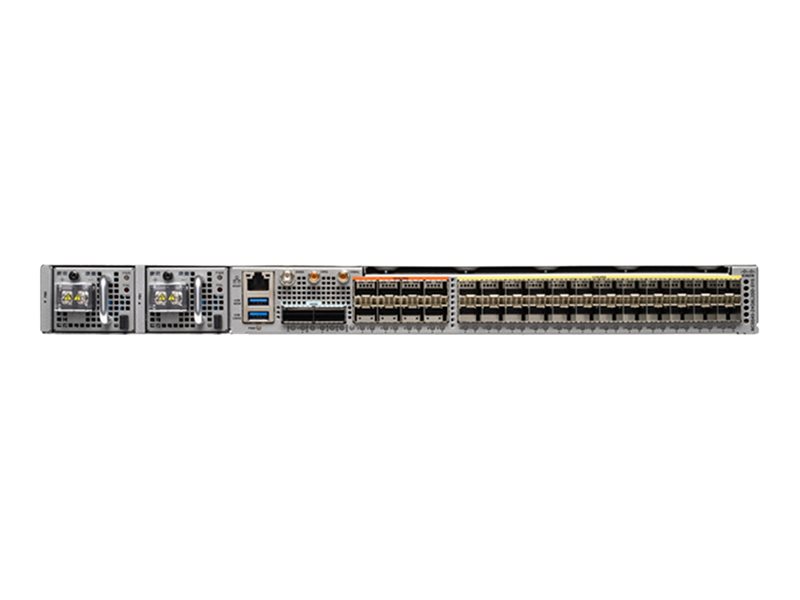

Cisco - Cisco Network Convergence System 540
Router 40GbE, 100GbE, 25GbE, 50GbE, 200GbE, 400GbE - front to back airflow - rack-mountable
Cisco
N540-24Q8L2DD-SYS=
N/A
N/A
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Cisco Network Convergence System 540 - router - rack-mountable |
| Device Type | Router |
| Enclosure Type | Front to back airflow rack-mountable - 1U |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet, 50 Gigabit Ethernet, 200 Gigabit Ethernet, 400 Gigabit Ethernet |
| Performance | Performance: up to 600 Mpps |
| Network / Transport Protocol | RSVP, DHCP, IPv4, IPv6 |
| Routing Protocol | OSPF, IS-IS, BGP, VRRP, OSPFv2, PIM-SM, IGMPv3, GRE, OSPFv3, PIM-SSM, Multiprotocol BGP, ECMP, MLDv2, IS-ISv6, MPLS, Bidirectional Forwarding Detection (BFD), Two-Way Active Measurement Protocol (TWAMP), mLDP, mVPN, P2MP-TE |
| Remote Management Protocol | SNMP, SSH, CLI, NETCONF, gRPC, OAM, ICMP, DHCP, JSON, YANG, TACACS+, GPB, XML |
| Features | Layer 3 switching, layer 2 switching, MPLS support, WRED, STP support, VRRP support, QoS, Jumbo Frames support, ECMP, BFD, URPF, DHCP relay, LACP, NetFlow, VRF, GRE, PTP, 6 fans, VOQ, LDP, OSPF, EVPN, FFR, AAA, CFM, L2VPN support, SyncE, ZTP, IS-IS, SPAN, SR-TE, IRB, ERSPAN, VLAN Tagging, T-LDP, multi-protocol support, Q-in-Q tunneling, LFA, LAG, BVI, OpenConfig support, MPLS LSR support, RPM, Cisco IP SLA, BD, EFP, BGP-LU, BGP, MPLS LER support, SR-PCE, TI-LFA, SR-ODN, LPTS, RSVP-TE, EVPN VPWS, PQ, SRv6 support |
| Compliant Standards | IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.1ab (LLDP), ITU-T Y.1731, ITU-T G.8032, ITU-T G.8265.1, ITU-T G.8275.1, ITU-T G.8273.2, ITU-T G.8275.2, MEF 3.0 |
| Dimensions (WxDxH) | 17.3 in x 11.8 in x 1.7 in |
| Weight | 12.79 lbs |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Router |
| Enclosure Type | Front to back airflow rack-mountable - 1U |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet, 50 Gigabit Ethernet, 200 Gigabit Ethernet, 400 Gigabit Ethernet |
| Performance | Performance: up to 600 Mpps |
| Network / Transport Protocol | RSVP, DHCP, IPv4, IPv6 |
| Routing Protocol | OSPF, IS-IS, BGP, VRRP, OSPFv2, PIM-SM, IGMPv3, GRE, OSPFv3, PIM-SSM, Multiprotocol BGP, ECMP, MLDv2, IS-ISv6, MPLS, Bidirectional Forwarding Detection (BFD), Two-Way Active Measurement Protocol (TWAMP), mLDP, mVPN, P2MP-TE |
| Remote Management Protocol | SNMP, SSH, CLI, NETCONF, gRPC, OAM, ICMP, DHCP, JSON, YANG, TACACS+, GPB, XML |
| Authentication Method | Secure Shell (SSH), TACACS+ |
| Features | Layer 3 switching, layer 2 switching, MPLS support, WRED, STP support, VRRP support, QoS, Jumbo Frames support, ECMP, BFD, URPF, DHCP relay, LACP, NetFlow, VRF, GRE, PTP, 6 fans, VOQ, LDP, OSPF, EVPN, FFR, AAA, CFM, L2VPN support, SyncE, ZTP, IS-IS, SPAN, SR-TE, IRB, ERSPAN, VLAN Tagging, T-LDP, multi-protocol support, Q-in-Q tunneling, LFA, LAG, BVI, OpenConfig support, MPLS LSR support, RPM, Cisco IP SLA, BD, EFP, BGP-LU, BGP, MPLS LER support, SR-PCE, TI-LFA, SR-ODN, LPTS, RSVP-TE, EVPN VPWS, PQ, SRv6 support |
| Compliant Standards | IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.1ab (LLDP), ITU-T Y.1731, ITU-T G.8032, ITU-T G.8265.1, ITU-T G.8275.1, ITU-T G.8273.2, ITU-T G.8275.2, MEF 3.0, CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1 Second Edition, RoHS 6/6, GB 4943, Directive 2004/108/EC, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2006/95/EC, GR-1089-CORE, VCCI Class A, GR-63-CORE, KN22 Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, KN 61000-4, EN 300386 Class A, CAN/CSA-C22.2 No. 60950-1, AS/NZS CISPR22 Class A, ETS/EN 300 119 Part 4, ETS/EN 300 753, ETS/EN 300 019 1.2, ETS/EN 300 019 2.3, ETS/EN 300 019 3.2 |
| Processor | 1.5 GHz |
| RAM | 16 GB |
| Hard Drive | 64 GB |
| Built-in Devices | GNSS receiver |
| Status Indicators | Power, line synchronization, status, alarm, fan, GNSS |
| Expansion / Connectivity | |
| Interfaces | 24 x 1Gb Ethernet / 10Gb Ethernet / 25Gb Ethernet - QSFP28 ¦ 8 x 10Gb Ethernet / 25Gb Ethernet / 50Gb Ethernet - QSFP56 ¦ 2 x 400Gb Ethernet - QSFP56-DD ¦ Console: 1 x RS-232 - RJ-45 ¦ 1 x USB 2.0 - 4 pin USB Type A ¦ 1 x SuperSpeed USB 3.0 - 9 pin USB Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - advance hardware replacement - 1 year - response time: 10 days |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Power Redundancy | Yes |
| Installed Qty | 2 (max) |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 149 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 11.8 in |
| Height | 1.7 in |
| Weight | 12.79 lbs |
