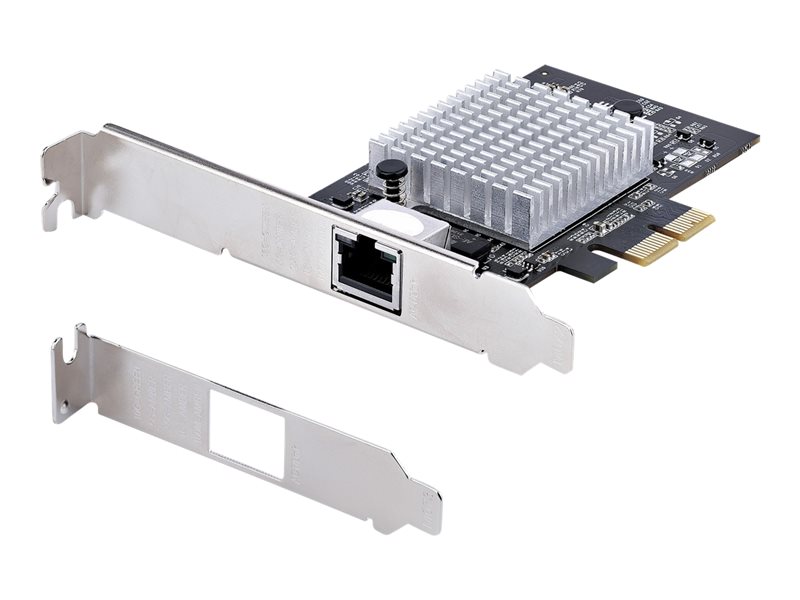

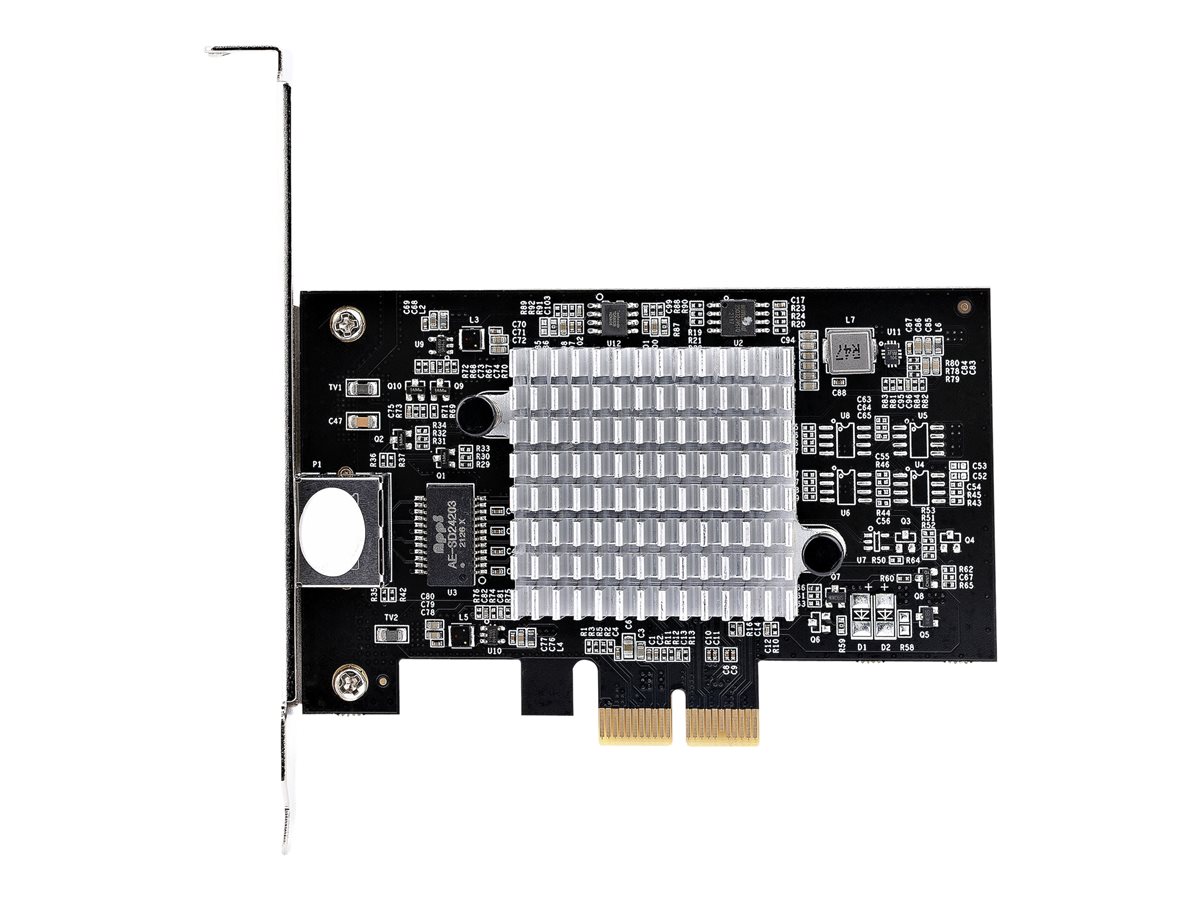

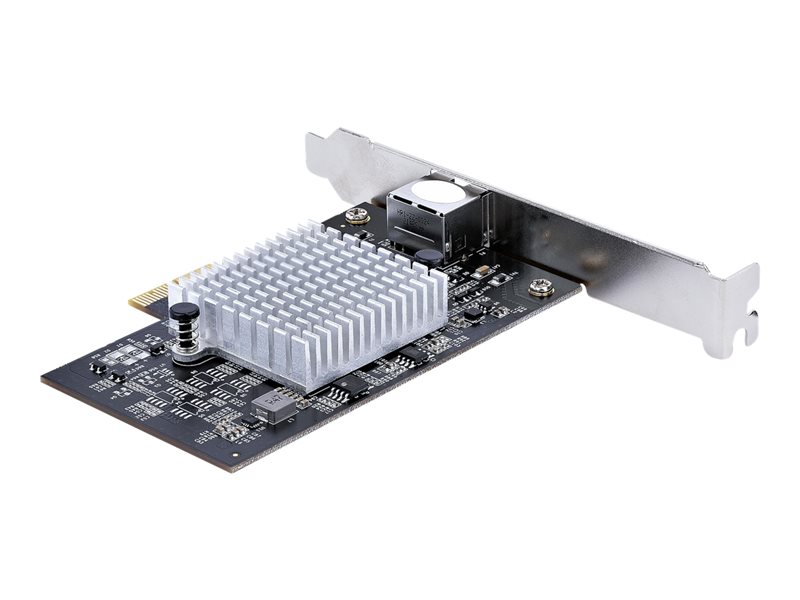

StarTech.com - StarTech.com 1-Port 10Gbps PCIe Network Adapter Card, Network Card for PC/Server, Low Profile PCIe Ethernet Card w/Jumbo Frame Support, NIC/LAN Interface Card
Marvell AQC113CS Chipset, PXE Boot (ST10GSPEXNB2) - Network adapter - PCIe 3.0 x2 - 10 Gigabit Ethernet x 1 - black
StarTech.com
ST10GSPEXNB2
N/A
0065030897549
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | StarTech.com 1-Port 10Gbps PCIe Network Adapter Card, Network Card for PC/Server, Low Profile PCIe Ethernet Card w/Jumbo Frame Support, NIC/LAN Interface Card - Marvell AQC113CS Chipset, PXE Boot (ST10GSPEXNB2) - network adapter - PCIe 3.0 x2 - 10 Gigabit Ethernet x 1 |
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 3.0 x2 |
| PCI Specification Revision | PCIe 3.0, PCIe 4.0 |
| Ports | 10 Gigabit Ethernet x 1 |
| Dimensions (WxDxH) | 0.6 in x 4.2 in x 2.2 in |
| Weight | 2.57 oz |
| Cabling Type | NBase-T |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE, 2.5GbE, 5GbE, 10GbE |
| Data Transfer Rate | 10 Gbps |
| Network / Transport Protocol | TCP/IP, UDP/IP |
| Processor | 1 x Marvell AQC113CS |
| Compliant Standards | IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE P802.3az |
| Color | Black |
| System Requirements | Windows 8 / 10 / 11, Linux 3.10.x or later LTS versions only |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 3.0 x2 |
| PCI Specification Revision | PCIe 3.0, PCIe 4.0 |
| Expansion / Connectivity | |
| Interfaces | 1 x 100M/1G/2.5/5/10 Gigabit Ethernet - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years ¦ Technical support - assistance - lifetime |
| Miscellaneous | |
| Included Accessories | Low-profile bracket |
| Compliant Standards | RoHS, RCM |
| Color | Black |
| Networking | |
| Ports | 10 Gigabit Ethernet x 1 |
| Connectivity Technology | Wired |
| Cabling Type | NBase-T |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet |
| Data Transfer Rate | 10 Gbps |
| Network / Transport Protocol | TCP/IP, UDP/IP |
| Status Indicators | Link/activity |
| Features | Auto MDIX, PXE boot, full duplex capability, 16 KB Jumbo Frame, AVB, VLAN Tagging, EEE, secure boot |
| Compliant Standards | IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE P802.3az |
| Software / System Requirements | |
| OS Required | Windows 8 / 10 / 11, Linux 3.10.x or later LTS versions only |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 140 °F |
| Processor / Memory | |
| Processor | 1 x Marvell AQC113CS |
| Dimensions & Weight | |
| Width | 0.6 in |
| Depth | 4.2 in |
| Height | 2.2 in |
| Weight | 2.57 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 1.4 in |
| Shipping Depth | 8.3 in |
| Shipping Height | 5.7 in |
| Shipping Weight | 5.33 oz |
