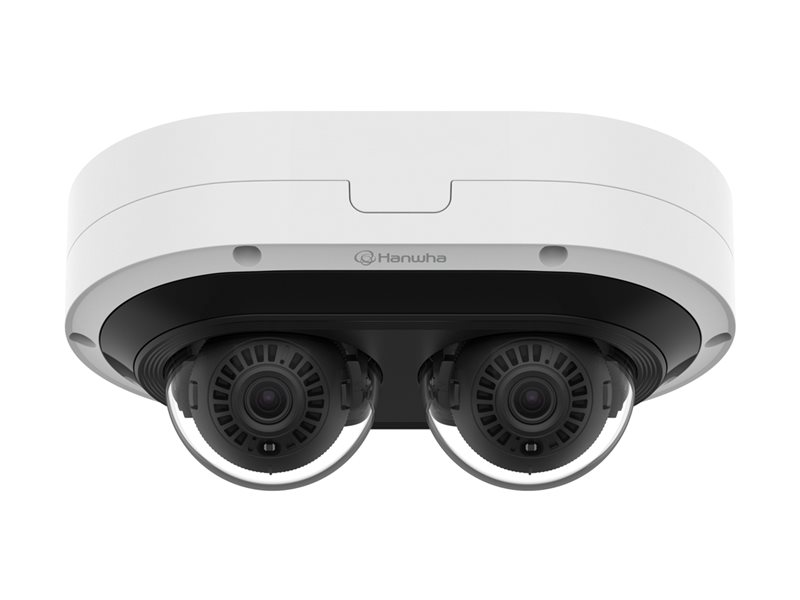

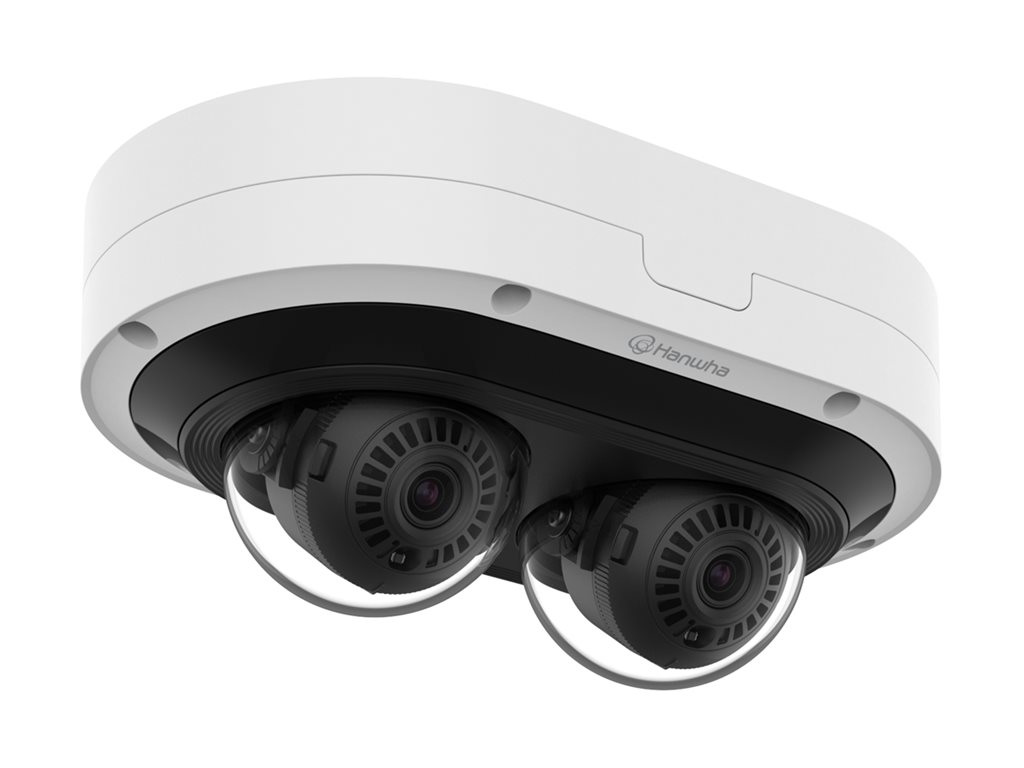

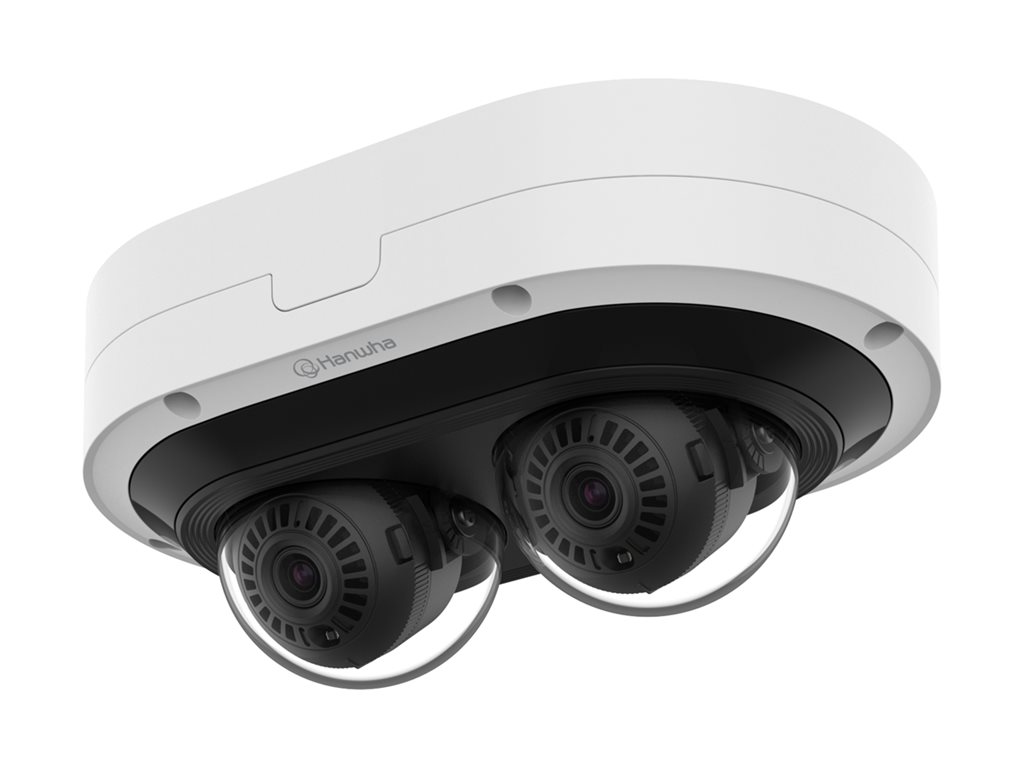

Hanwha Vision - Hanwha Vision WiseNet P PNM-7082RVD
Network surveillance camera - PTZ - color (Day&Night) - 2 x 2 MP - 1920 x 1080 - fixed iris - motorized - USB - GbE - MJPEG, H.264, H.265 - PoE Plus
Hanwha Vision
PNM-7082RVD
N/A
8801089217462
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Hanwha Vision WiseNet P PNM-7082RVD - network surveillance camera |
| Device Type | Network surveillance camera - pan / tilt / zoom |
| Camera Mount Type | Ceiling mount |
| Dimensions (WxDxH) | 8.5 in x 5.3 in x 3.7 in |
| Weight | 2.93 lbs |
| Color | White, RAL 9003 |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Optical Zoom | 2 x |
| Max Resolution | 1920 x 1080 |
| Frame Rate (max) | 30 frames per second |
| Motion Detection | Yes |
| Optical Sensor Type | CMOS - 2 x 1/2.8" - 2 x 2 MP |
| Minimum Illumination | 0.035 lux - color - F2.2 - 30 IRE - shutter 1/30 sec ¦ 0.0035 lux - B&W - F2.2 - 30 IRE - shutter 1/30 sec ¦ 0 lux - B&W - infrared LEDs on |
| Focal Length Control | Motorized zoom |
| Focal Length | 3 mm - 6 mm |
| Focus Adjustment | Automatic (min distance 19.7 in) |
| Lens Iris | F/2.2-3.1 - fixed iris |
| Panning Range (degree) | 0 to 355 |
| Tilting Range (degree) | 0 to 78 |
| Interfaces | USB, Ethernet 10Base-T/100Base-TX/1000Base-T |
| Voltage | PoE Plus |
| Features | Auto ICR, Backlight Compensation (BLC), Highlight Compensation (HLC), Wide Dynamic Range (WDR), Samsung Super Dynamic Range (SSDR), Extreme WDR, WiseNR, Samsung Super Noise Reduction (SSNR) V, Defog, Privacy Mask Function, auto gain control, auto white balance, Lens Distortion Compensation (LDC), anti-flicker, image flip, image mirror, Hallway View, alarm function, notification picture to FTP, notification picture to E-mail, trigger recording, Handover, WiseStream II support, Unicast Streaming, Multicast Streaming, IP address filtering, ONVIF (Profile S) support, ONVIF (Profile T) support, user access log, digest authentication, TPM 2.0 module |
| Environmental Parameters (operating) | -40 °F - 131 °F; 0 - 95% RH (non-condensing) relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Camera Mount Type | Ceiling mount |
| Connectivity Technology | Wired |
| Width | 8.5 in |
| Depth | 5.3 in |
| Height | 3.7 in |
| Weight | 2.93 lbs |
| Expansion / Connectivity | |
| Ports | USB - Micro-USB Type B ¦ LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous | |
| Compliant Standards | IK10, IP66, IP67, NEMA Type 4X, IEEE 802.1x, IEEE 802.3at, NDAA |
| Color | White, RAL 9003 |
| Power | |
| Power Requirements | PoE Plus |
| Power Device | 12.5 Watt |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 131 °F |
| Relative Humidity (operating) | 0 - 95% RH (non-condensing) |
| Camera | |
| Type | Color - Day&Night - pan / tilt / zoom |
| Digital Video Format | MJPEG, H.264, H.265 |
| Max Digital Video Resolution | 1920 x 1080 |
| Motion Detection | Yes |
| Exposure Range | 2 sec - 1/12000 sec |
| Minimum Illumination | 0.035 lux - color - F2.2 - 30 IRE - shutter 1/30 sec ¦ 0.0035 lux - B&W - F2.2 - 30 IRE - shutter 1/30 sec ¦ 0 lux - B&W - infrared LEDs on |
| Infrared LEDs | Yes |
| Infrared Distance | 82 ft |
| Digital Video Capture Resolution | 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 320, 320 x 240 |
| Frame Rate (max) | 30 frames per second |
| RAM | 4 GB |
| Flash Memory | 512 MB |
| Features | Auto ICR, Backlight Compensation (BLC), Highlight Compensation (HLC), Wide Dynamic Range (WDR), Samsung Super Dynamic Range (SSDR), Extreme WDR, WiseNR, Samsung Super Noise Reduction (SSNR) V, Defog, Privacy Mask Function, auto gain control, auto white balance, Lens Distortion Compensation (LDC), anti-flicker, image flip, image mirror, Hallway View, alarm function, notification picture to FTP, notification picture to E-mail, trigger recording, Handover, WiseStream II support, Unicast Streaming, Multicast Streaming, IP address filtering, ONVIF (Profile S) support, ONVIF (Profile T) support, user access log, digest authentication, TPM 2.0 module |
| Lens Construction | |
| Type | Motorized zoom |
| Optical Zoom | 2 x |
| Focal Length | 3 mm - 6 mm |
| Lens Iris | F/2.2-3.1 fixed iris |
| Focus Adjustment | Automatic |
| Min Focus Distance | 19.7 in |
| Image Sensor | |
| Type | 2 x 2 MP CMOS 2 x 1/2.8" |
| Interfaces | |
| Video | USB |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP, RTCP, RTSP, NTP, HTTP, HTTPS, SSL, TLS, DHCP, FTP, SMTP, ICMP, SNMP 1, SNMP 2c, SNMP 3, ARP, DNS, DDNS, QOS, IGMP, UPnP, Bonjour, LLDP, SRTP |
| Panning | |
| Range (degree) | 0 to 355 |
| Tilting | |
| Range (degree) | 0 to 78 |
