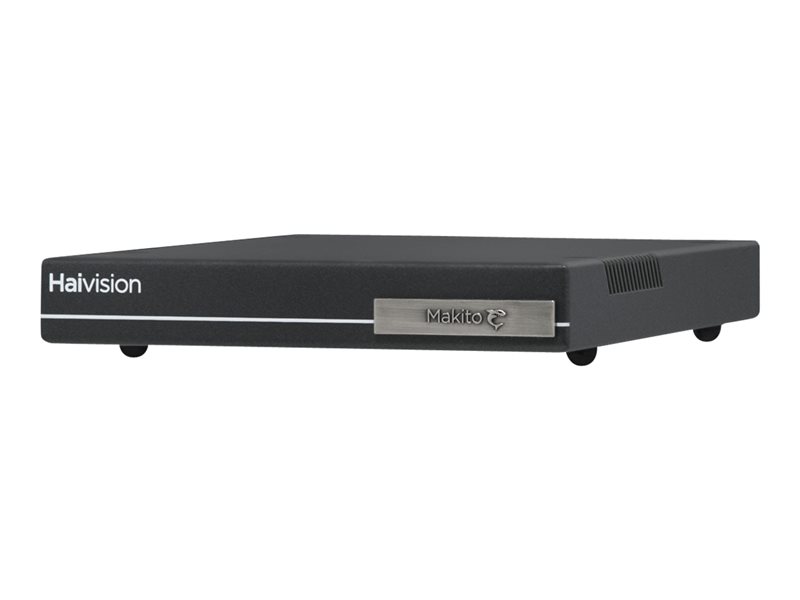

Haivision Network Video - Haivision Makito X S-292E-HDSDI1
Video over IP encoder module
Haivision Network Video
S-292E-HDSDI1-CNS-A
N/A
N/A
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Haivision Makito X S-292E-HDSDI1 video over IP encoder module |
| Type | Video over IP encoder module |
| Dimensions (WxDxH) | 8 in - 5.9 in - 0.9 in |
| Weight | 2.8 lbs |
| General | |
| Type | Video over IP encoder module |
| Width | 8 in |
| Depth | 5.9 in |
| Height | 0.9 in |
| Weight | 2.8 lbs |
| Power | |
| Voltage Required | AC 120/230 V AC 100-240 V |
| Power Consumption | 20 Watt |
| Low Voltage Power | DC 12 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Terminals | |
| Terminals | (1) x 3G HD-SDI input - BNC ¦ (1) x audio input / output - 8 pin mini-DIN ¦ (1) x network - RJ-45 ¦ (1) x serial - RJ-45 - RS-232 |
| Studio & Production Equipment | |
| Features | H.264 codec support, 1080p60 support |
