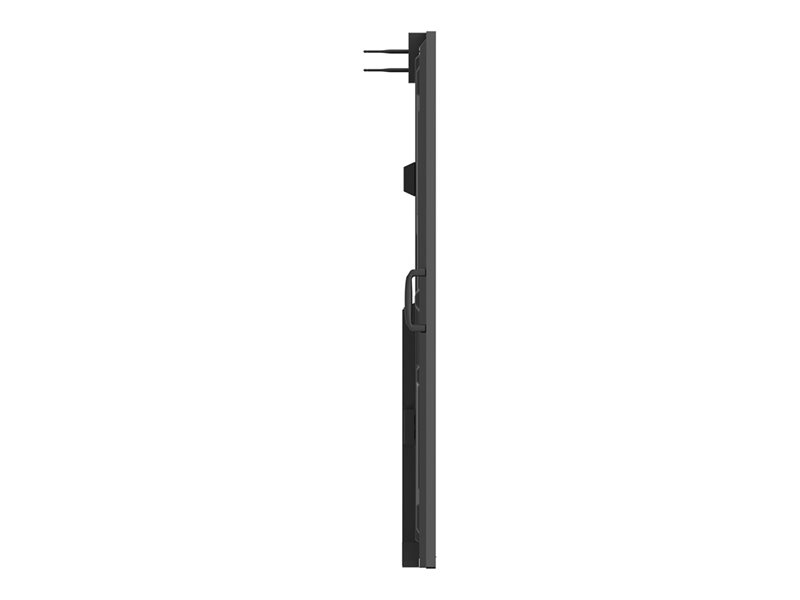

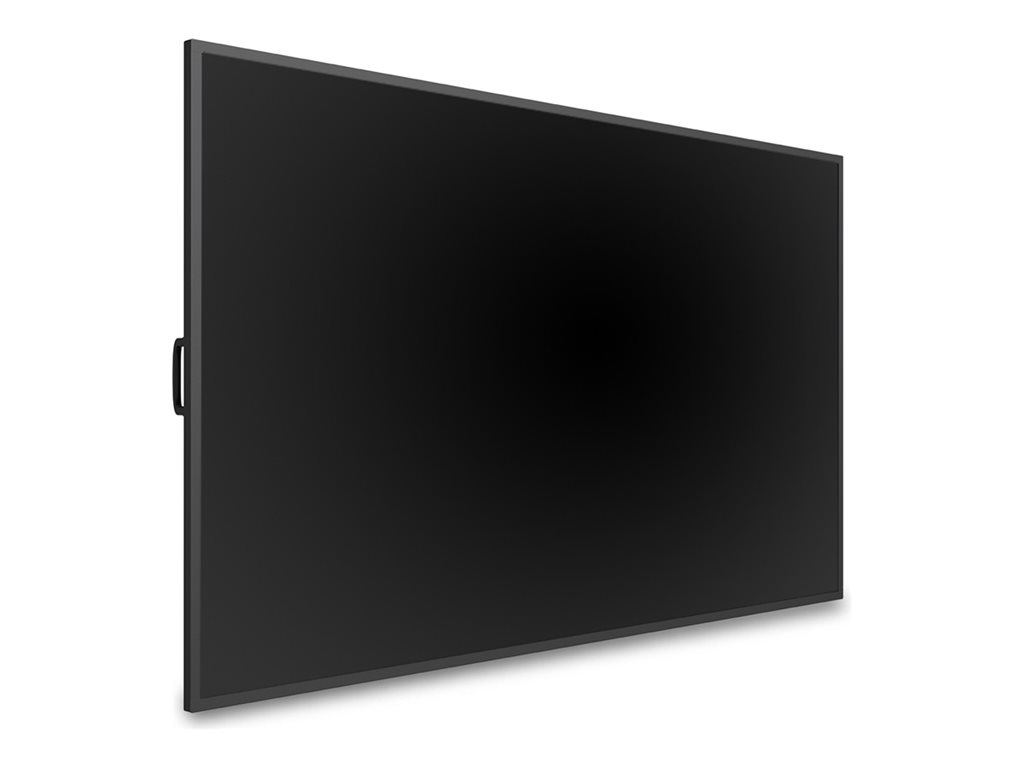

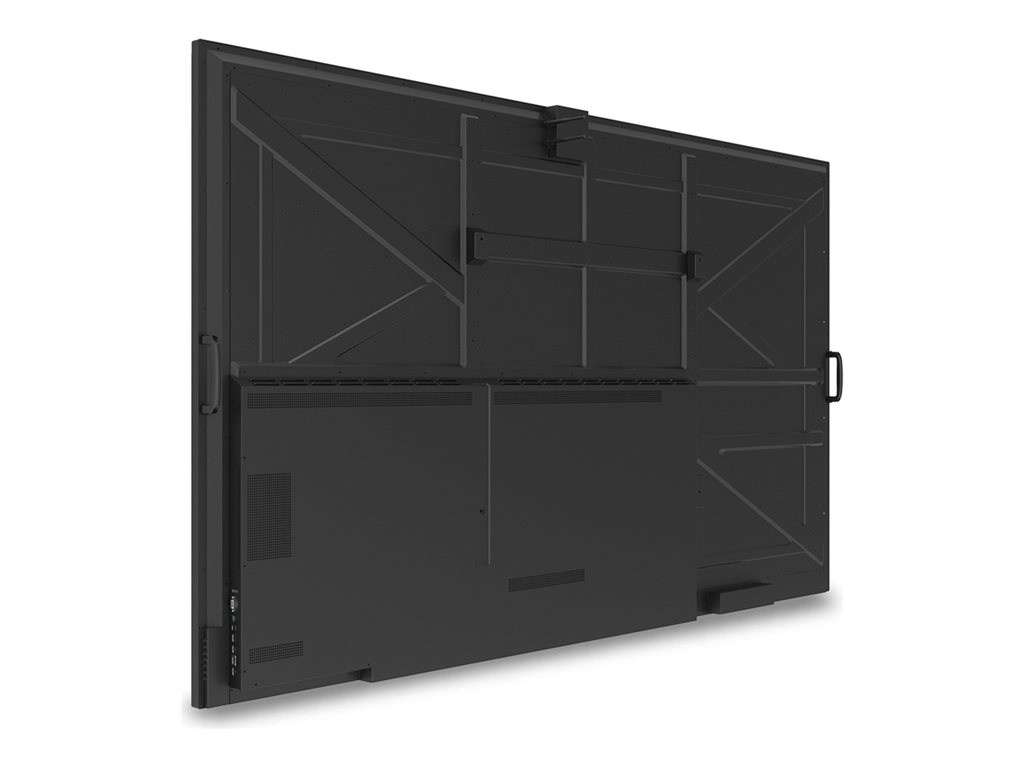

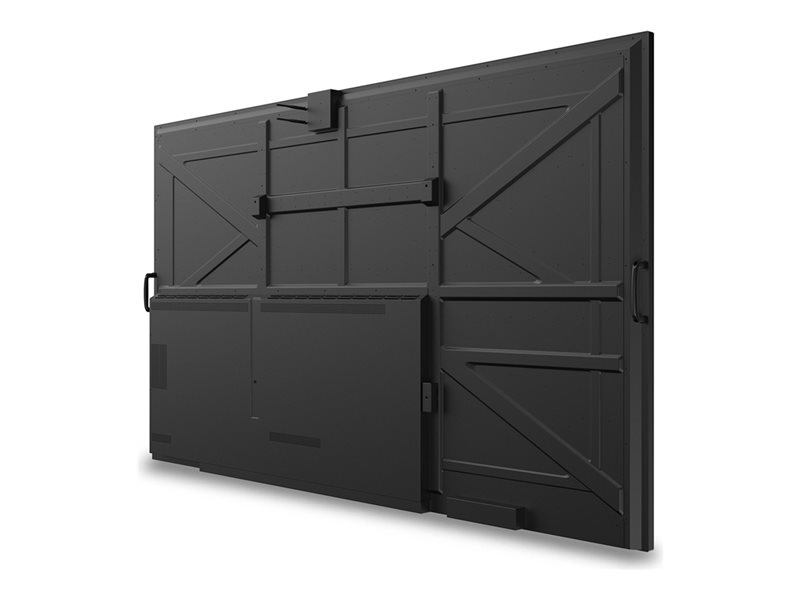

ViewSonic - ViewSonic Digital Display CDE9830
98" Diagonal Class CDE30 Series LED-backlit LCD display - digital signage - Android - 4K UHD (2160p) 3840 x 2160
ViewSonic
CDE9830
N/A
0766907017526
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | ViewSonic Digital Display CDE9830 CDE30 Series - 98" LED-backlit LCD display - 4K - for digital signage |
| Product Type | LED-backlit LCD flat panel display |
| Diagonal Class | 98" |
| Commercial Use | Yes - digital signage |
| Platform | Android |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Video Interface | HDMI |
| HDMI Ports Qty | 3 ports |
| Connectivity | LAN |
| PC Interface | DisplayPort |
| LCD Backlight Technology | LED backlight |
| TV Tuner | No tuner |
| Speaker System | 2 speakers |
| Storage Capacity | 32 GB |
| USB | 2 ports |
| Included Accessories | Remote control, wall mounting screw, RS232 adapter |
| Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 190 Watt |
| Dimensions (WxDxH) - without stand | 87.1 in x 3.1 in x 49.9 in |
| Weight | 153 lbs |
| Environmental Standards | ENERGY STAR Qualified |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Product Type | LED-backlit LCD flat panel display |
| Power Consumption Operational | 190 Watt |
| Diagonal Class | 98" |
| Commercial Use | Yes - digital signage |
| Series | CDE30 Series |
| Platform | Android |
| Operating System | Android OS 11 |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Video Interface | HDMI |
| HDMI Ports Qty | 3 ports |
| PC Interface | DisplayPort |
| Modes | Portrait mode, landscape mode |
| Design | Slim Bezel Design |
| Dimensions | Without stand |
| Width | 87.1 in |
| Depth | 3.1 in |
| Height | 49.9 in |
| Weight | 153 lbs |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 5 years |
| Miscellaneous | |
| Included Accessories | Wall mounting screw, RS232 adapter |
| Cables Included | HDMI cable - 10 ft ¦ USB-C cable - 6 ft |
| Compliant Standards | ICES-003, CB, FCC, WEEE, cTUVus, REACH, UkrSEPRO, ERP, EAC, RCM, CE/EMC, Mexico Energy label, TPCH, Mexico CoC, RoHS DoC, Mexico NOM, CA65, SCIP, Annex II (EU) 2015/863, TUV flicker free |
| Power | |
| Power Device | Power supply |
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% RH (non-condensing) |
| Display | |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| LCD Backlight Technology | LED backlight |
| Coating | Anti-glare, 3H Hard |
| Dynamic Contrast Ratio | 5000:1 |
| Brightness | 500 cd/m² |
| Viewing Angle | 178° |
| Viewing Angle (Vertical) | 178° |
| Response Time | 8 ms |
| Backlight Life | 50,000 hours |
| Operation Hours / Days | 24 / 7 |
| Additional Features | Open Pluggable Specification slot, ViewBoard Cast software, WiFi slot, 24/7 operation time |
| Connections | |
| Connector Type | 3 x HDMI input ¦ DisplayPort input ¦ HDMI output ¦ SPDIF output ¦ LAN ¦ USB 2.0 ¦ USB 3.0 ¦ USB 3.0 downstream |
| Remote Control | |
| Type | Remote control |
| Battery Included | Yes |
| Audio System | |
| Speaker System | 2 speakers |
| Output Power / Total | 20 Watt |
| Additional Features | Apple AirPlay support, built-in Chromecast |
| Speakers | 2 x main channel speaker - 10 Watt |
| Dimensions & Weight (Shipping) | |
| Width (Shipping) | 92.9 in |
| Depth (Shipping) | 11 in |
| Height (Shipping) | 56.1 in |
| Weight (Shipping) | 199.08 lbs |
| Network & Internet Multimedia | |
| Connectivity | LAN |
| LAN Protocol | Fast Ethernet |
| Stands & Mounts | |
| Flat Panel Mount Interface | 800 x 600 mm |
| VESA Compatibility | Yes |
| Media Player | |
| Supported Video Formats | MPEG-1, MPEG-2, MPEG-4, Motion-JPEG, H.264, H.263, H.265, VP9, VP8 |
| Supported Audio Formats | MP3, WAV, PCM, AAC, Ogg Vorbis, FLAC (Free Lossless Audio Codec), ALAC |
| Supported Pictures Formats | BMP, GIF, PNG, JPEG |
| USB Port | Yes |
| USB Ports Qty | 2 |
| Configuration | ARM Cortex-A55 Quad-Core - 4 GB DDR4 - 32 GB |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 8.0 |
