Elo Touch Solutions - Elo 2203LM
Medical Grade - LED monitor - 22" (21.5" viewable) - touchscreen - 1920 x 1080 Full HD (1080p) @ 60 Hz - 250 cd/m² - 1000:1 - 14 ms - HDMI, VGA - speakers - white
Elo Touch Solutions
E381048
N/A
0843173150710
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Elo 2203LM - Medical Grade - LED monitor - Full HD (1080p) - 22" |
| Device Type | LED-backlit LCD monitor - 22" - touchscreen |
| Features | Touchscreen, USB hub |
| Aspect Ratio | 16:9 |
| Native Resolution | Full HD (1080p) 1920 x 1080 at 60 Hz |
| Brightness | 250 cd/m² |
| Contrast Ratio | 1000:1 |
| Response Time | 14 ms (tr - tf) |
| Color Support | 16.7 million colors |
| Input Connectors | HDMI, VGA |
| Screen Coating | Anti-glare |
| Voltage | AC 100/240 V (50/60 Hz) |
| Color | White |
| Dimensions (WxDxH) - without stand | 12.9 in x 20.7 in x 1.7 in |
| Weight | 10.58 lbs |
| Compliant Standards | UL, VCCI, BSMI, cUL, CB, CCC, IC, FCC, KCC, DICOM Part 14, IP54, IEC 60601-1, ISO 14971, EAC, RCM, ANSI/AAMI ES60601-1, CoC, CAN/CSA C22.2 No. 60601-1:14, IEC 60601-1:2005 + A1:2012 |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Display Type | LED-backlit LCD monitor / TFT active matrix |
| Diagonal Size | 22" |
| Viewable Size | 21.5" |
| Built-in Devices | USB hub |
| Aspect Ratio | 16:9 |
| Native Resolution | Full HD (1080p) 1920 x 1080 at 60 Hz |
| Brightness | 250 cd/m² |
| Brightness w/touchscreen | 225 cd/m² |
| Contrast Ratio | 1000:1 |
| Color Support | 16.7 million colors |
| Response Time | 14 ms (tr - tf) |
| Vertical Refresh Rate | 50 - 75 Hz |
| Horizontal Refresh Rate | 30 - 82 kHz |
| Horizontal Viewing Angle | +89 / -89 |
| Vertical Viewing Angle | +89 / -89 |
| Screen Coating | Anti-glare |
| Backlight Technology | LED backlight |
| OSD Languages | Chinese (traditional), Chinese (simplified), English, German, French, Italian, Russian, Spanish, Japanese, Korean |
| Features | DICOM calibrated, TouchPro technology |
| Color | White |
| Dimensions (WxDxH) | 12.9 in x 20.7 in x 1.7 in - without stand |
| Weight | 10.58 lbs |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Features | IP54 protection, IK06 impact rating |
| Included Accessories | 2 screws, 3 tie wraps |
| Cables Included | 1 x VGA cable ¦ 1 x HDMI cable ¦ 1 x USB cable ¦ 1 x audio cable |
| MTBF | 50,000 hours |
| Compliant Standards | UL, VCCI, BSMI, cUL, CB, CCC, IC, FCC, KCC, DICOM Part 14, IP54, IEC 60601-1, ISO 14971, EAC, RCM, ANSI/AAMI ES60601-1, CoC, CAN/CSA C22.2 No. 60601-1:14, IEC 60601-1:2005 + A1:2012 |
| Power | |
| Input Voltage | AC 100/240 V (50/60 Hz) |
| Power Consumption (Typical) | 16.78 Watt |
| Power Consumption Sleep | 0.78 Watt |
| Power Consumption (Off Mode) | 0.36 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 80% |
| Audio | |
| Type | Speakers - stereo |
| Output Power / Channel | 2 Watt |
| Connectivity | |
| Interfaces | HDMI ¦ VGA ¦ Audio line-out (mini-jack) ¦ USB (Type B) ¦ USB 2.0 (Type A) ¦ 4 x Micro-USB |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 18 in |
| Shipping Depth | 24.9 in |
| Shipping Height | 7.8 in |
| Shipping Weight | 16.42 lbs |
| Input | |
| Type | Touchscreen - touchscreen |
| Movement Detection Technology | Projected capacitive |
| Mechanical | |

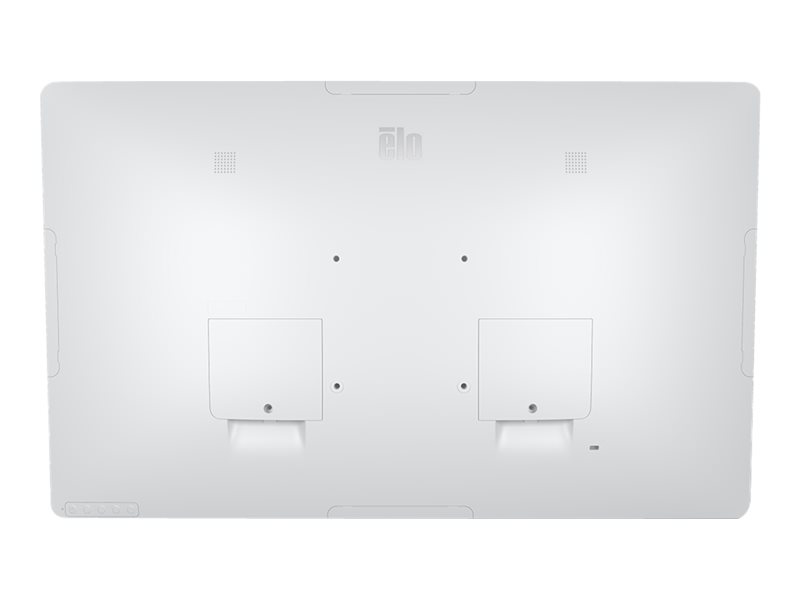

| VESA Mounting Interface | 100 x 100 mm |
