AVer Information - AVer TR313V2
Network surveillance camera - PTZ - indoor - color - 8 MP - motorized - 1400 TVL - audio - HDMI, 3G-SDI, USB - GbE - MJPEG, H.264, H.265, YUV - DC 12 V / PoE Plus - TAA Compliant
AVer Information
PATR313V2
N/A
0848090008465
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | AVer TR313V2 - network surveillance camera - TAA Compliant |
| Device Type | Network surveillance camera - pan / tilt / zoom - indoor |
| Audio | Yes |
| Dimensions (WxDxH) | 7.1 in x 5.7 in x 7.6 in |
| Weight | 4.41 lbs |
| Connectivity Technology | Wired |
| Camera | Color - 1400 TVL |
| Optical Zoom | 12 x |
| Frame Rate (max) | 60 frames per second |
| Motion Detection | Yes |
| Video Modes | 720p, 1080p, 2160p |
| Optical Sensor Type | CMOS - 1/2.8" - 8 MP |
| Minimum Illumination | 0.5 lux F1.6 - 50 IRE - shutter 1/30 sec / AGC on |
| Focal Length Control | Motorized zoom |
| Focal Length | 3.9 mm - 46.8 mm |
| Focus Adjustment | Automatic, manual (min distance 11.8 in) |
| Lens Iris | F/1.6-2.8 |
| Panning Range (degree) | -170 to +170 |
| Tilting Range (degree) | -30 to +90 |
| Interfaces | HDMI, 3G-SDI, USB, Ethernet 10Base-T/100Base-TX/1000Base-T |
| Control Interface | RS-422, RS-232, VISCA |
| Cables Included | 1 - DB-9 to DIN-8 adapter - external ¦ 1 - RS-232 cable - external |
| Voltage | DC 12 V / PoE Plus |
| Features | Manual white balance, Backlight Compensation (BLC), manual exposure, digital image freeze, auto exposure control, image flip, image mirror, Wide Dynamic Range (WDR), 2D Noise Reduction Technology, 3D Noise Reduction Technology, 256 preset positions, multi-streaming, security lock slot (cable lock sold separately), manual gain control, Live Streaming, auto tracking, Variable Bitrate (VBR), Constant Bitrate (CBR), auto gain control, auto white balance, Pelco Protocol, Artificial Intelligence, human detection, tally light, USB video class (UVC 1.1), USB audio class (UAC 1.0), Hybrid Mode |
| TAA Compliant | Yes |
| Manufacturer Warranty | 3-year warranty |
| Environmental Parameters (operating) | 32 °F - 104 °F; 20 - 80% relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Audio Support | Yes |
| Audio Formats | PCM, AAC-LC |
| Connectivity Technology | Wired |
| Width | 7.1 in |
| Depth | 5.7 in |
| Height | 7.6 in |
| Weight | 4.41 lbs |
| Expansion / Connectivity | |

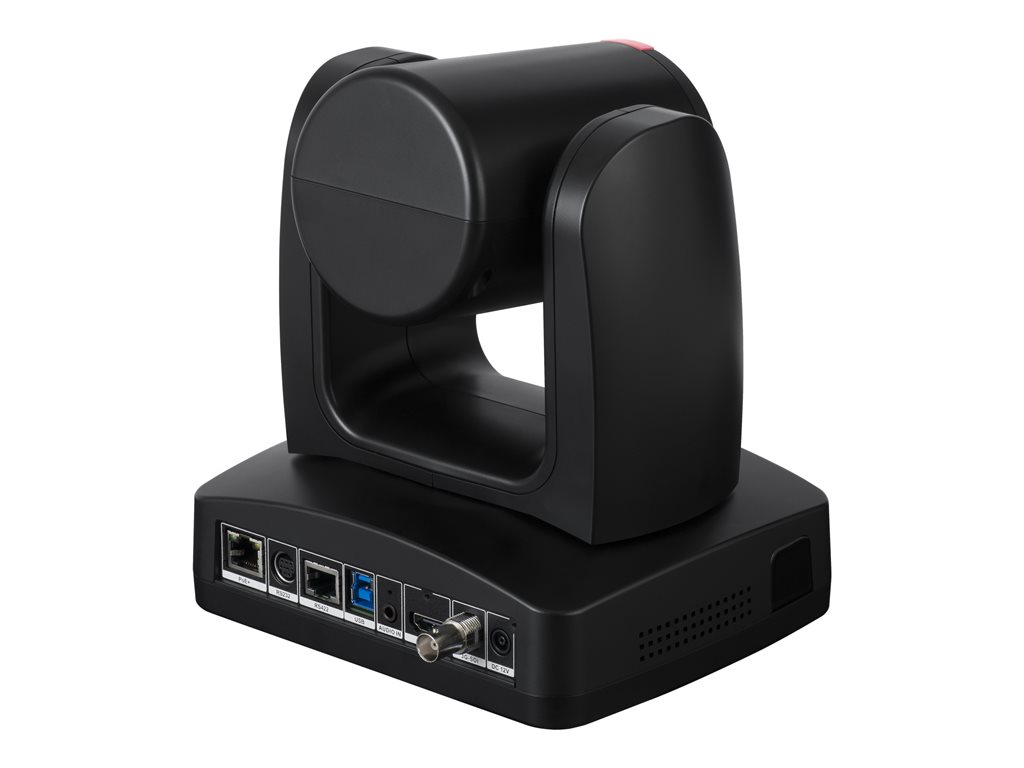

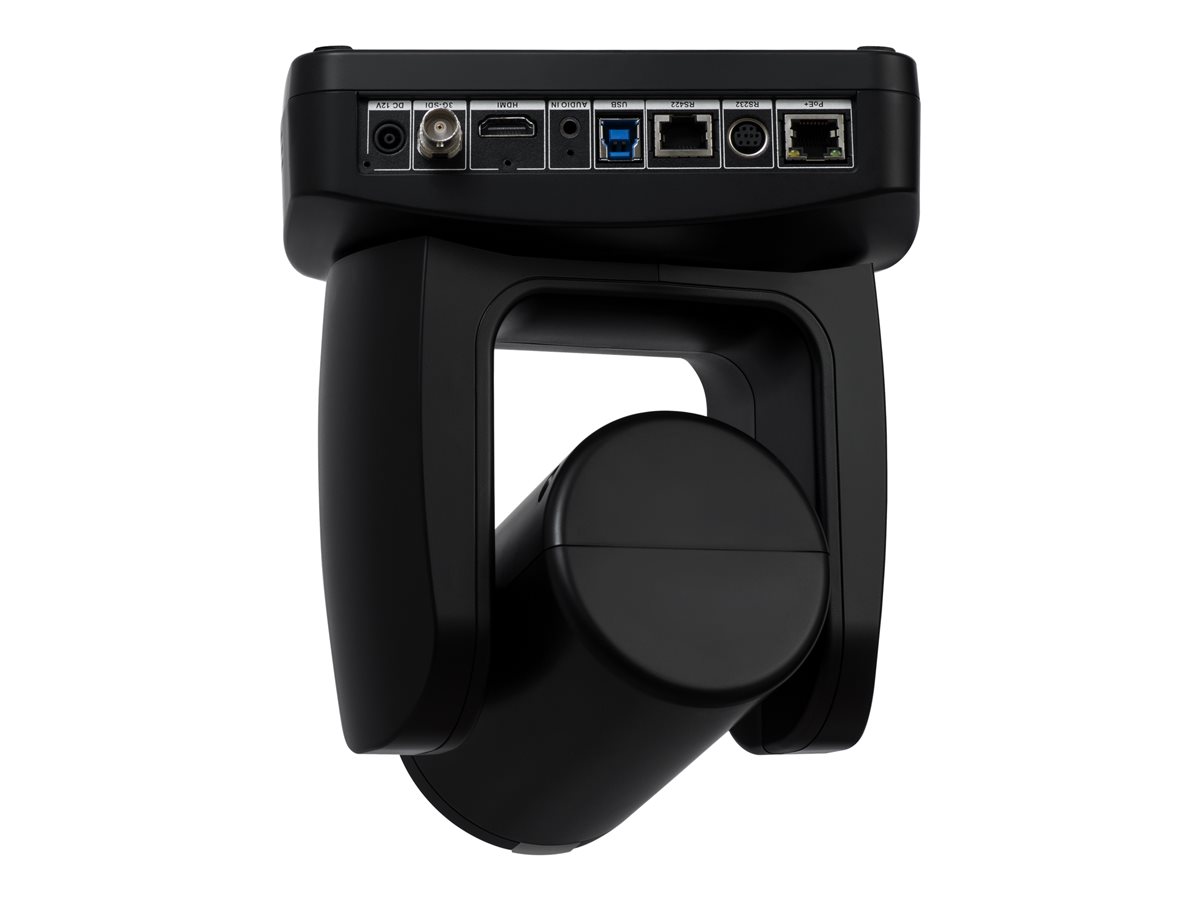

| Ports | 3G-SDI - BNC ¦ HDMI ¦ LAN/power - RJ-45 ¦ USB 3.0 ¦ Audio line-in/microphone ¦ Serial RS-232 ¦ Serial RS-422 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 3 years |
| Miscellaneous | |
| Included Accessories | Remote control, ceiling mount kits, screws, cable fixing plate |
| Cables Included | 1 x DB-9 to DIN-8 adapter - external ¦ 1 x RS-232 cable - external |
| TAA Compliant | Yes |
| Compliant Standards | IEEE 802.3at |
| Power | |
| Power Requirements | DC 12 V / PoE Plus |
| Power Device | Power adapter - external 18 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Relative Humidity (operating) | 20 - 80% |
| Camera | |
| Type | Color - pan / tilt / zoom - indoor |
| Digital Video Format | MJPEG, H.264, H.265, YUV |
| Horizontal Resolution (TV Lines) | 1400 |
| Motion Detection | Yes |
| Video Modes | 720p, 1080p, 2160p |
| Digital Zoom | 12 |
| Exposure Range | 1 sec - 1/10000 sec |
| Minimum Illumination | 0.5 lux F1.6 - 50 IRE - shutter 1/30 sec / AGC on |
| Frame Rate (max) | 60 frames per second |
| Features | Manual white balance, Backlight Compensation (BLC), manual exposure, digital image freeze, auto exposure control, image flip, image mirror, Wide Dynamic Range (WDR), 2D Noise Reduction Technology, 3D Noise Reduction Technology, 256 preset positions, multi-streaming, security lock slot (cable lock sold separately), manual gain control, Live Streaming, auto tracking, Variable Bitrate (VBR), Constant Bitrate (CBR), auto gain control, auto white balance, Pelco Protocol, Artificial Intelligence, human detection, tally light, USB video class (UVC 1.1), USB audio class (UAC 1.0), Hybrid Mode |
| Lens Construction | |
| Type | Motorized zoom |
| Optical Zoom | 12 x |
| Focal Length | 3.9 mm - 46.8 mm |
| Lens Iris | F/1.6-2.8 |
| Focus Adjustment | Automatic, manual |
| Min Focus Distance | 11.8 in |
| Horizontal Field of View (degree) | 6 - 70 |
| Vertical Field of View (degree) | 3 - 42 |
| Diagonal Field of View (degree) | 7 - 78 |
| Image Sensor | |
| Type | 8 MP CMOS 1/2.8" |
| Interfaces | |
| Video | HDMI, 3G-SDI, USB |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | DHCP, HTTP, TCP/IP, UDP/IP, ARP, ICMP, RTSP, RTP, IPv4, IPv6, RTCP, IGMP, CGI, RTMP |
| Control Interface | RS-422, RS-232, VISCA |
| Panning | |
| Range (degree) | -170 to +170 |
| Speed (degree/sec) | Up to 200 |
| Tilting | |
| Range (degree) | -30 to +90 |
| Speed (degree/sec) | Up to 200 |
