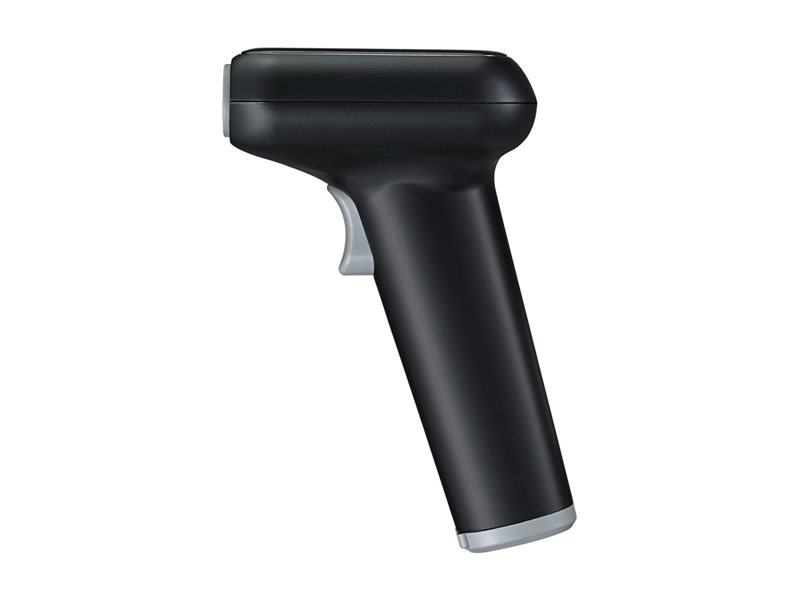

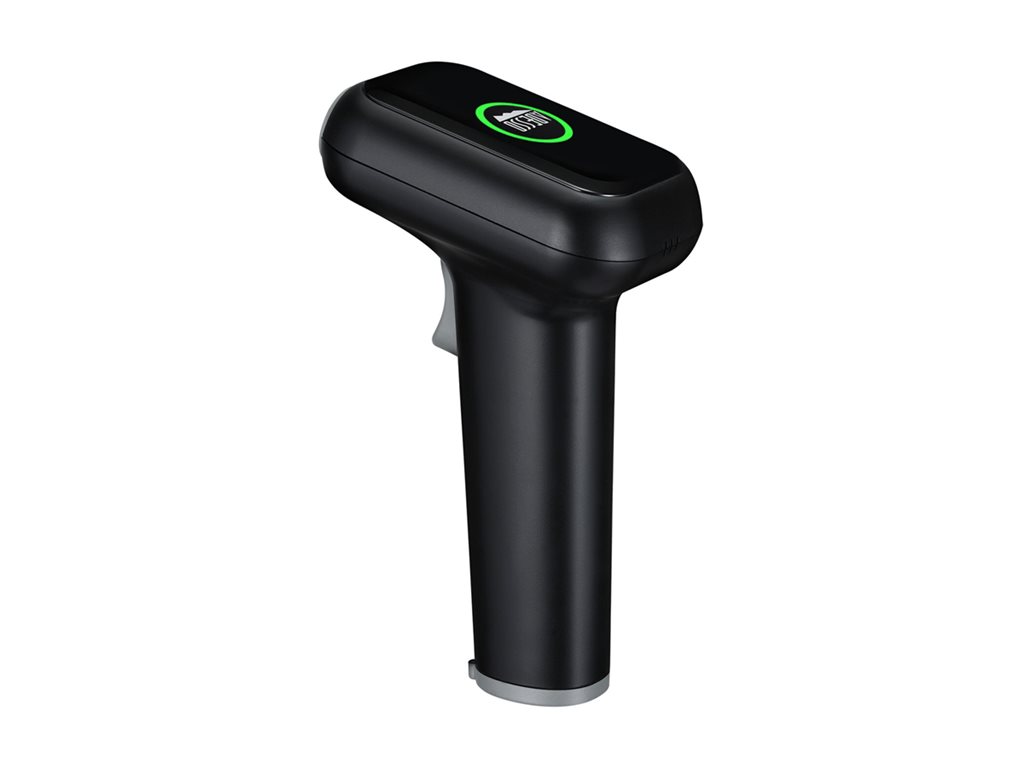

Adesso - Adesso NuScan 2700R
Barcode scanner - handheld - 120 frames / sec - decoded - RS-232, USB, RF(2.4 GHz)
Adesso
NUSCAN2700R
N/A
0783750010658
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Adesso NuScan 2700R - barcode scanner |
| Type | Barcode scanner - handheld - RS-232, USB, RF(2.4 GHz) - decoded |
| Minimum Bar Width | 13 mil |
| Scan Element Type | CMOS |
| Sensor Resolution | 640 x 480 |
| Scan Speed | 120 frames / sec |
| Connectivity Technology | Wireless, wired |
| Battery | Lithium ion |
| Dimensions (WxDxH) | 3.3 in x 2.4 in x 6.6 in |
| Weight | 3.53 oz |
| General | |
| Type | Barcode scanner - handheld |
| Expansion / Connectivity | |
| Interfaces | 1 x USB ¦ 1 x RS-232 |
| Miscellaneous | |
| Included Accessories | Cradle |
| Compliant Standards | IC, FCC, RoHS, IP54 |
| Power | |
| Battery | Lithium ion |
| Environmental Parameters | |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Drop Specification | 5 ft |
| Dimensions & Weight | |
| Width | 3.3 in |
| Depth | 2.4 in |
| Height | 6.6 in |
| Weight | 3.53 oz |
| Barcode | |
| Interface Type | RS-232, USB, RF(2.4 GHz) |
| Minimum Bar Width | 13 mil |
| Scan Element Type | CMOS |
| Sensor Resolution | 640 x 480 |
| Light Source Wave Length | 640 nm |
| Frame Rate | 120 frames / sec |
| Skew (Degrees) | 40 |
| Pitch (Degrees) | 45 |
| Print Contrast Signal (PCS) | 25% |
| Decode Capability | Code 93, Matrix 2 of 5, Industrial 2 of 5, Code 39, ISBN, GS1 DataBar, QR code, Aztec code, Code 32, MicroPDF417, Codabar, Code 128, Code 11, Interleaved 2 of 5, PDF417, Data Matrix, ISSN, Micro QR code, GS1 DataBar Expanded, GS1 DataBar Limited, EAN-8, EAN-13, GS1-128, RSS-14, UPC-A / E |
| TTL Decoding | Decoded |
| Connectivity Technology | Wireless, wired |
| OK Notification | Beeper, LED indicator |
