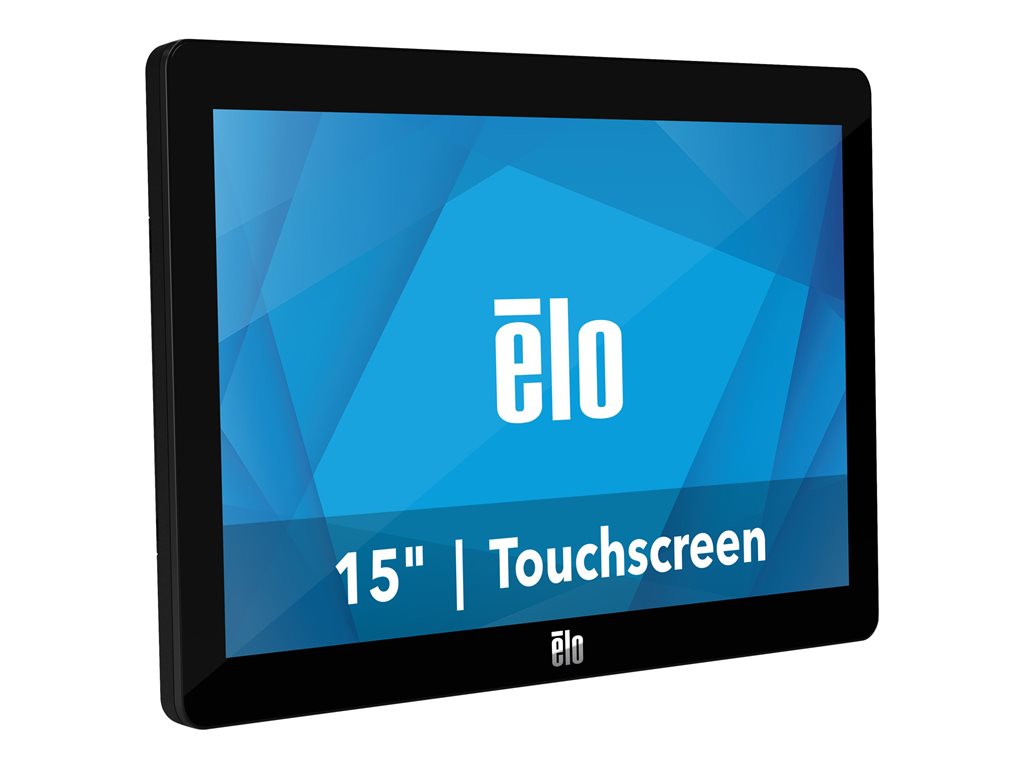

Elo Touch Solutions - Elo 1502L
No Stand - M-Series - LED monitor - 15.6" - touchscreen - 1920 x 1080 Full HD (1080p) @ 60 Hz - 300 cd/m² - 700:1 - 35 ms - HDMI, VGA - speakers - black
Elo Touch Solutions
E125496
N/A
0843173124063
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Elo 1502L - No Stand - M-Series - LED monitor - Full HD (1080p) - 15.6" |
| Device Type | LED-backlit LCD monitor - 15.6" - touchscreen |
| Features | Touchscreen |
| Aspect Ratio | 16:9 |
| Native Resolution | Full HD (1080p) 1920 x 1080 at 60 Hz |
| Brightness | 300 cd/m² |
| Contrast Ratio | 700:1 |
| Response Time | 35 ms |
| Color Support | 16.7 million colors |
| Input Connectors | HDMI, VGA |
| Screen Coating | Anti-glare |
| Voltage | AC 120/230 V (50/60 Hz) |
| Color | Black |
| Dimensions (WxDxH) - without stand | 15.2 in x 1.3 in x 9.6 in |
| Weight | 3.62 lbs |
| Compliant Standards | UL, VCCI, BSMI, cUL, NOM, CB, CCC, IC, FCC, RoHS, KCC, WEEE, REACH, E-Standby, IPX1, RCM, BIS |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Display Type | LED-backlit LCD monitor / TFT active matrix |
| Diagonal Size | 15.6" |
| Aspect Ratio | 16:9 |
| Native Resolution | Full HD (1080p) 1920 x 1080 at 60 Hz |
| Brightness | 300 cd/m² |
| Brightness w/touchscreen | 270 cd/m² |
| Contrast Ratio | 700:1 |
| Color Support | 16.7 million colors |
| Response Time | 35 ms |
| Vertical Refresh Rate | 50 - 75 Hz |
| Horizontal Refresh Rate | 31.5 - 82 kHz |
| Horizontal Viewing Angle | +80 / -80 |
| Vertical Viewing Angle | +80 / -80 |
| Screen Coating | Anti-glare |
| Backlight Technology | LED backlight |
| OSD Languages | Chinese (traditional), Chinese (simplified), English, German, French, Italian, Spanish, Japanese |
| Features | Edge-to-edge glass, Zero-Bezel Design, Projected Capacitive Touch (P-CAP) technology |
| Color | Black |
| Dimensions (WxDxH) | 15.2 in x 1.3 in x 9.6 in - without stand |
| Weight | 3.62 lbs |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Features | Security lock slot (cable lock sold separately), VESA interface support |
| Included Accessories | 3 screws, 2 screws, cable clamp, 2 tie wraps |
| Cables Included | 1 x HDMI cable ¦ 1 x USB-A to USB-C adapter |
| MTBF | 50,000 hour(s) |
| Compliant Standards | UL, VCCI, BSMI, cUL, NOM, CB, CCC, IC, FCC, RoHS, KCC, WEEE, REACH, E-Standby, IPX1, RCM, BIS |
| Security Slot Type | Kensington security slot |
| Power | |
| Input Voltage | AC 120/230 V (50/60 Hz) |
| Power Consumption (Typical) | 12 Watt |
| Power Consumption Sleep | 2 Watt |
| Power Consumption (Off Mode) | 0.2 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| Audio | |
| Type | Speakers - stereo |
| Output Power / Channel | 2 Watt |
| Connectivity | |
| Interfaces | Mini-VGA ¦ HDMI ¦ USB (Type C) ¦ Audio line-in ¦ 3 x Micro-USB |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 6.9 in |
| Shipping Depth | 17.8 in |
| Shipping Height | 12.6 in |
| Shipping Weight | 7.47 lbs |
| Input | |
| Type | Touchscreen - touchscreen |
| Movement Detection Technology | Projected capacitive |
| Mechanical | |
| VESA Mounting Interface | 100 x 100 mm, 75 x 75 mm |
