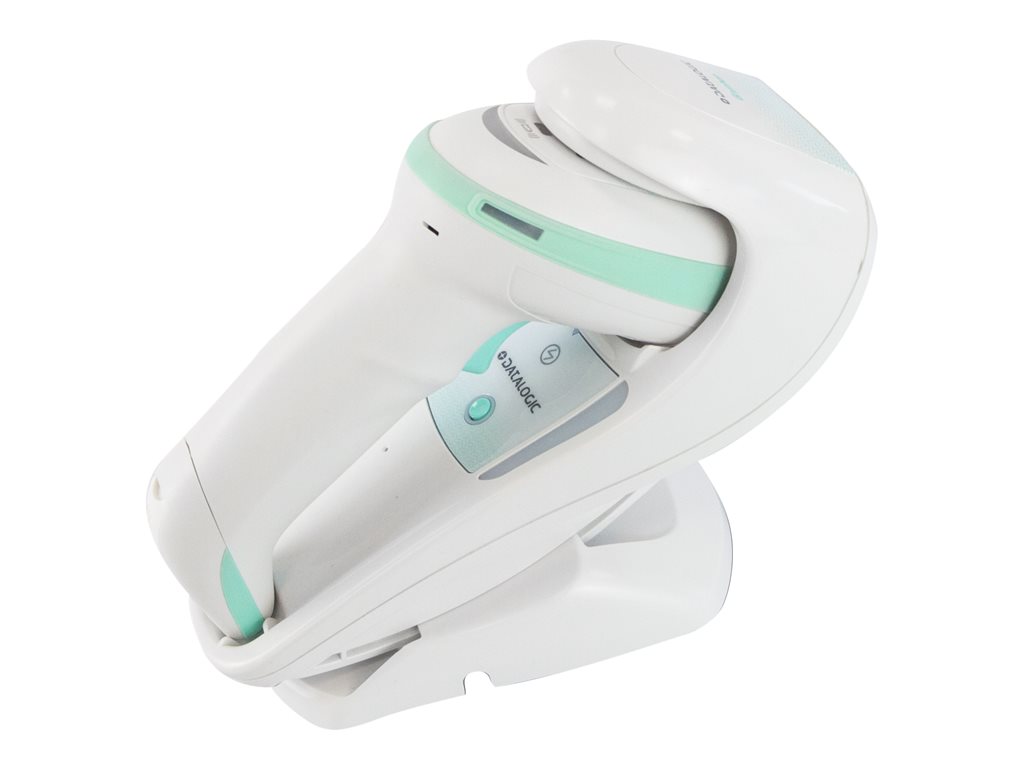

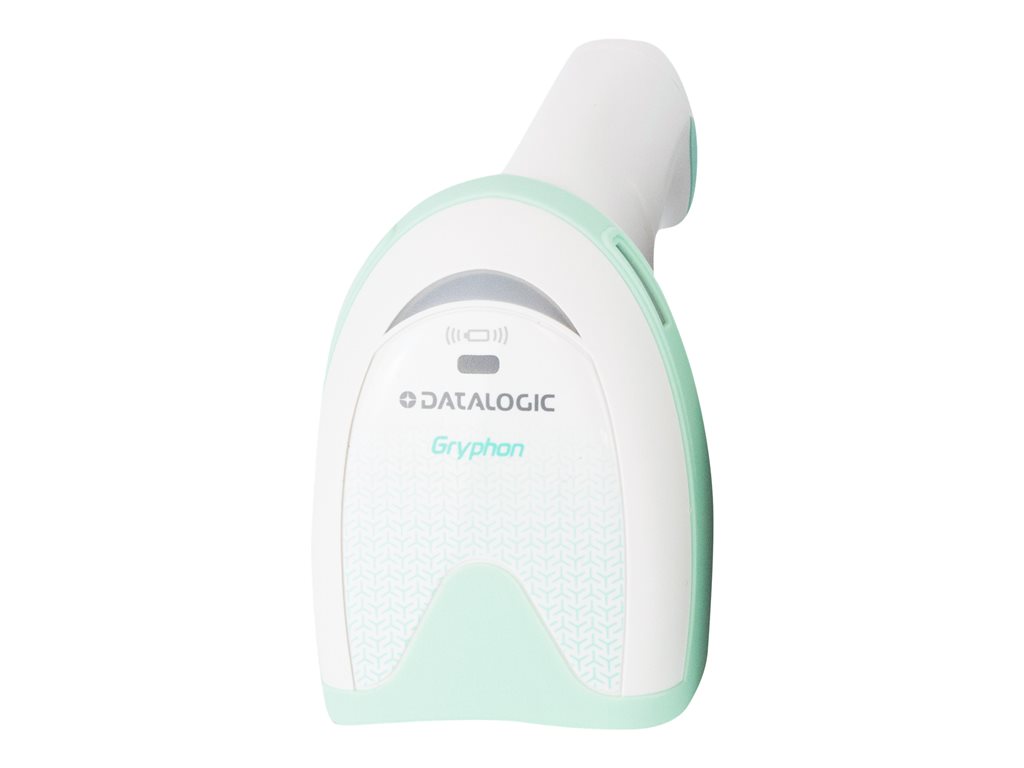

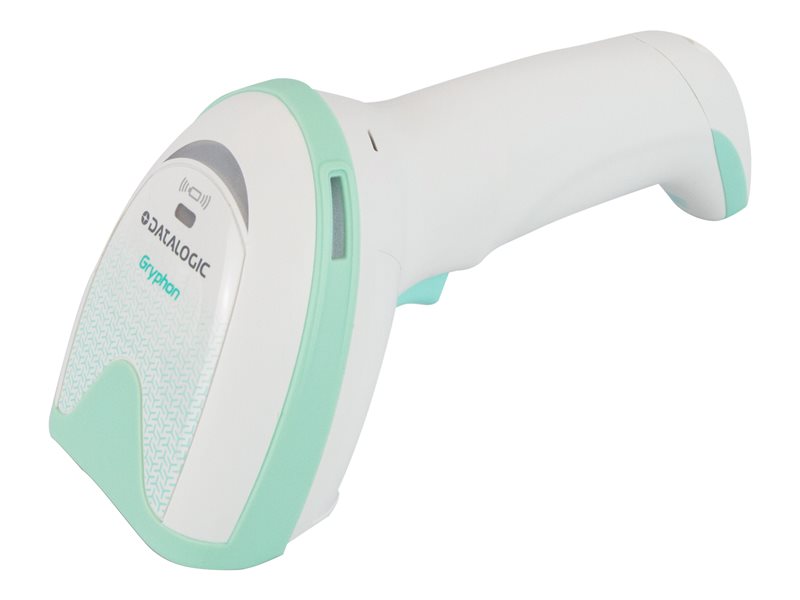

Datalogic - Datalogic Gryphon I GD4520-HC
Kit - barcode scanner - handheld - 2D imager - decoded - USB
Datalogic
GD4520-HCK1
N/A
0817215842130
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Datalogic Gryphon I GD4520-HC - Kit - barcode scanner |
| Type | Barcode scanner - handheld - USB - decoded |
| Color | White |
| Scan Element Type | 2D imager |
| Sensor Resolution | 1280 x 800 |
| Connectivity Technology | Wired |
| Dimensions (WxDxH) | 2.7 in x 4.3 in x 6.5 in |
| Weight | 5.68 oz |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Type | Barcode scanner - handheld |
| Color | White |
| Expansion / Connectivity | |
| Interfaces | 1 x USB |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Cables Included | 1 x USB cable |
| Compliant Standards | RoHS, IP52 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Drop Specification | 6 ft to concrete |
| Dimensions & Weight | |
| Width | 2.7 in |
| Depth | 4.3 in |
| Height | 6.5 in |
| Weight | 5.68 oz |
| Barcode | |
| Interface Type | USB |
| Scan Element Type | 2D imager |
| Sensor Resolution | 1280 x 800 |
| Light Source Wave Length | 650 nm |
| Skew (Degrees) | 65 |
| Pitch (Degrees) | 65 |
| Print Contrast Signal (PCS) | 15% |
| Decode Capability | MaxiCode, Aztec code, MicroPDF417, Postnet, PDF417, Data Matrix, PLANET, Australian Post, British Post, China Post, Japanese Post, Kix (Netherlands) Post, MacroPDF417, RM4SCC, Royal Mail, Micro QR code, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, GS1 DataBar Composites, GS1 DataBar Stacked, China Han Xin Code, UPC A Composite, UPC E Composite |
| TTL Decoding | Decoded |
| Connectivity Technology | Wired |
| OK Notification | Beeper, LED indicator |
| Features | Datalogic Three Green Lights (3GL), Green Spot technology, Digimarc Barcode Technology, Direct Part Mark (DPM) |
