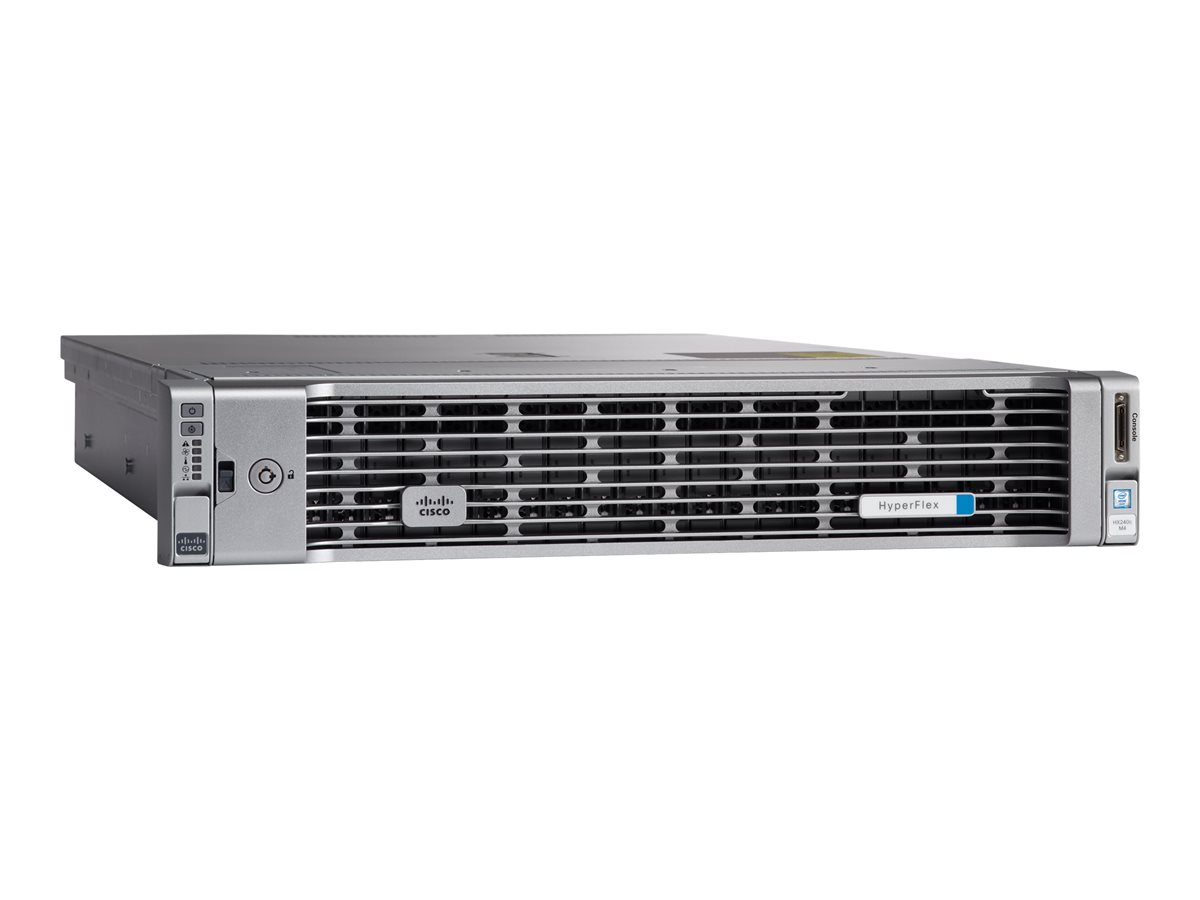

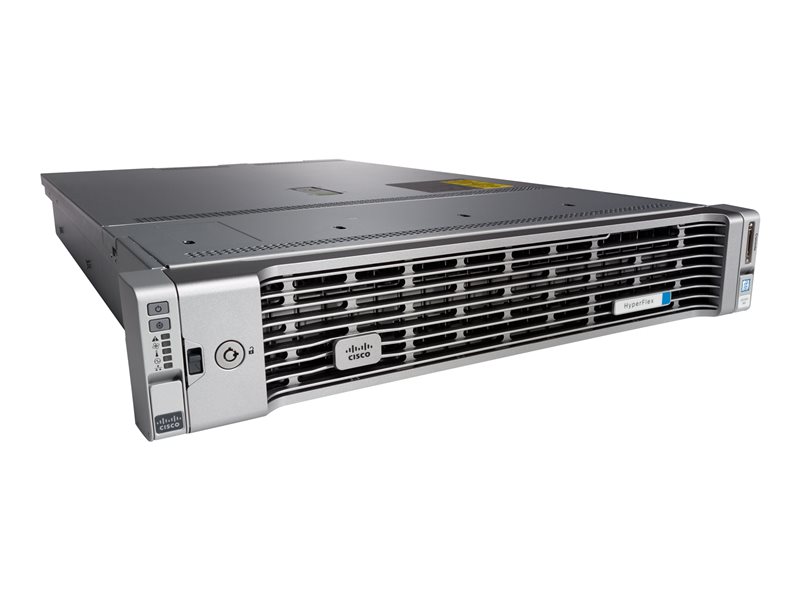

Cisco - Cisco UCS Smart Play Select HX240c Hyperflex System
Server - rack-mountable - 2U - 2-way - 2 x Xeon E5-2690V4 / 2.6 GHz - RAM 512 GB - SAS - hot-swap 2.5" bay(s) - SSD 1.6 TB, SSD 120 GB, HDD 15 x 1.2 TB - G200e - GigE, 10 GigE, 10Gb FCoE - monitor: none - with Cisco HyperFlex HX Data Platform SW Subscription 3 Years
Cisco
HX-SP-240M4SBP1-3A
N/A
N/A
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Cisco UCS Smart Play Select HX240c Hyperflex System - rack-mountable - Xeon E5-2690V4 2.6 GHz - 512 GB - SSD 1.6 TB, SSD 120 GB, HDD 15 x 1.2 TB |
| Type | Server - rack-mountable |
| Bundled Services | Cisco HyperFlex HX Data Platform SW Subscription 3 Years |
| Height (Rack Units) | 2U |
| Server Scalability | 2-way |
| Processor | 2 x Intel Xeon E5-2690V4 / 2.6 GHz (, up to 3.5 GHz, (14-core) |
| Processor Socket | LGA2011-v3 Socket |
| Cache Memory | 70 MB L3 cache |
| Cache Per Processor | 35 MB |
| RAM | 512 GB (installed) / 1536 GB (max) - DDR4 SDRAM - ECC - PC4-19200 |
| Storage Controller | SAS (SATA 6Gb/s / SAS 12Gb/s) |
| Server Storage Bays | Hot-swap 2.5" |
| Hard Drive | SSD 1.6 TB - SATA 6Gb/s |
| Hard Drive (2nd) | SSD 120 GB - SATA 6Gb/s |
| Hard Drive (3rd) | 15 x HDD 1.2 TB (hot-swap) - SAS 12Gb/s |
| Optical Storage | No optical drive |
| Graphics Controller | Matrox G200e |
| Video Memory | 8 MB |
| Networking | GigE, 10 GigE, 10Gb FCoE |
| Power | AC 200/240 V (50/60 Hz) |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17.6 in x 29.1 in x 3.4 in |
| Manufacturer Warranty | Limited warranty - replacement - 3 years - response time: next business day |
| General | |
| Type | Server |
| Bundled Services | Cisco HyperFlex HX Data Platform SW Subscription 3 Years |
| Product Form Factor | Rack-mountable - 2U |
| Server Scalability | 2-way |
| Hot-Swap Bays Qty | 24 |
| Expansion / Connectivity | |
| Bays | 24 hot-swap 2.5" SFF |
| Slots | 2 (total) / 0 (free) x CPU ¦ 24 (total) / 8 (free) x DIMM 288-pin ¦ 2 (total) / 0 (free) x SD card (internal) ¦ 1 PCIe 3.0 x24 - three-quarter-length, full-height ¦ 1 PCIe 3.0 x24 - half-length, low-profile ¦ 1 (total) / 0 (free) x PCIe |
| Interfaces | 2 x USB 3.0 ¦ 1 x VGA ¦ 1 x serial - RJ-45 ¦ 2 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x management (NIC) - RJ-45 ¦ 1 x KVM (1 in front) ¦ 2 x LAN (10Gigabit Ethernet) (SFP+) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 3 years - response time: next business day |
| Miscellaneous | |
| Included Accessories | Bezel, 2 x CPU Heatsink, riser card, 8x 2.5 inch HDD blanking panel, Cisco Ball Bearing Rail Kit, 2 x 64 GB SD Memory Card, CPU asset tab ID label |
| Compliant Standards | CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1 Second Edition, Directive 2004/108/EC, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2006/95/EC, VCCI Class A, KN24, KN22 Class A, GB4943.1-2001, EN 300386 |
| RAM | |
| Installed Size | 512 GB / 1536 GB (max) |
| Technology | DDR4 SDRAM - ECC |
| Effective Memory Speed | 2400 MHz |
| Rated Memory Speed | 2400 MHz |
| Memory Specification Compliance | PC4-19200 |
| Form Factor | DIMM 288-pin |
| Slots | 24 (total) / 8 (empty) |
| Features | Registered, dual rank |
| Configuration Features | 16 x 32 GB |
| Networking | |
| Ethernet Ports | 2 x Gigabit Ethernet, 2 x SFP+ |
| Ethernet Controller | Cisco UCS Virtual Interface Card 1227, Intel I350 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, 10Gb Fibre Channel over Ethernet (FCoE) |
| Remote Management Controller | Cisco Integrated Management Controller |
| Features | PXE support |
| Power | |
| Device Type | Power supply - hot-plug |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Voltage Required | AC 200/240 V (50/60 Hz) |
| Power Provided | 1400 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Storage Controller | |
| Type | 1 x SAS |
| Controller Interface Type | SATA 6Gb/s / SAS 12Gb/s |
| Cache Memory | |
| Installed Size | L3 cache - 70 MB |
| Cache Per Processor | 35 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Matrox G200e |
| Video Memory | 8 MB |
| Video Interfaces | VGA |
| Hard Drive | |
| Type | SSD |
| Capacity | 1 x 1.6 TB |
| Interface Type | SATA 6Gb/s |
| Dimensions & Weight | |
| Width | 17.6 in |
| Depth | 29.1 in |
| Height | 3.4 in |
| Hard Drive (2nd) | |
| Type | SSD |
| Interface Class | Serial ATA |
| Capacity | 1 x 120 GB |
| Interface Type | SATA 6Gb/s |
| Features | Boot drive |
| Processor / Chipset | |
| CPU | Intel Xeon E5-2690V4 |
| Clock Speed | 2.6 GHz |
| Max Turbo Speed | 3.5 GHz |
| Number of Cores | 14-core |
| CPU Qty | 2 |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| CPU Socket | LGA2011-v3 Socket |
| Hard Drive (3rd) | |
| Type | HDD - hot-swap |
| Capacity | 15 x 1.2 TB |
| Interface Type | SAS 12Gb/s |
| Spindle Speed | 10000 rpm |
