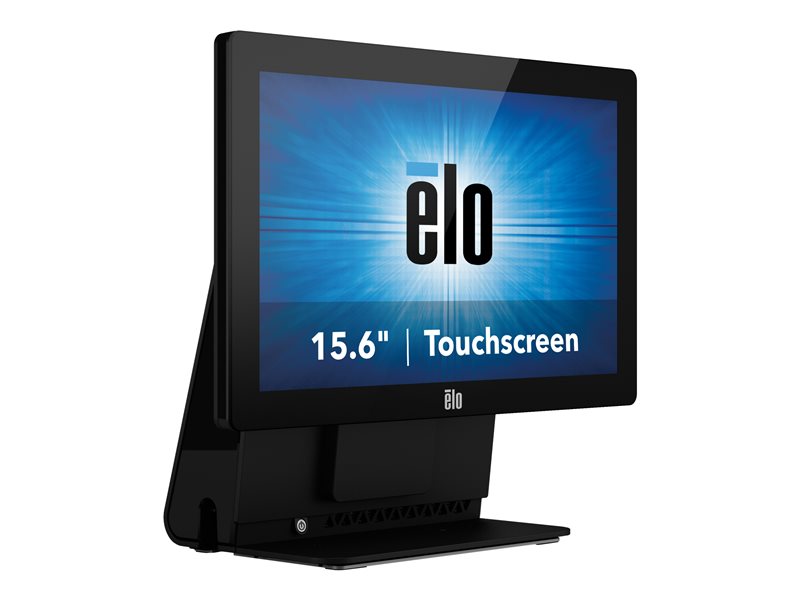

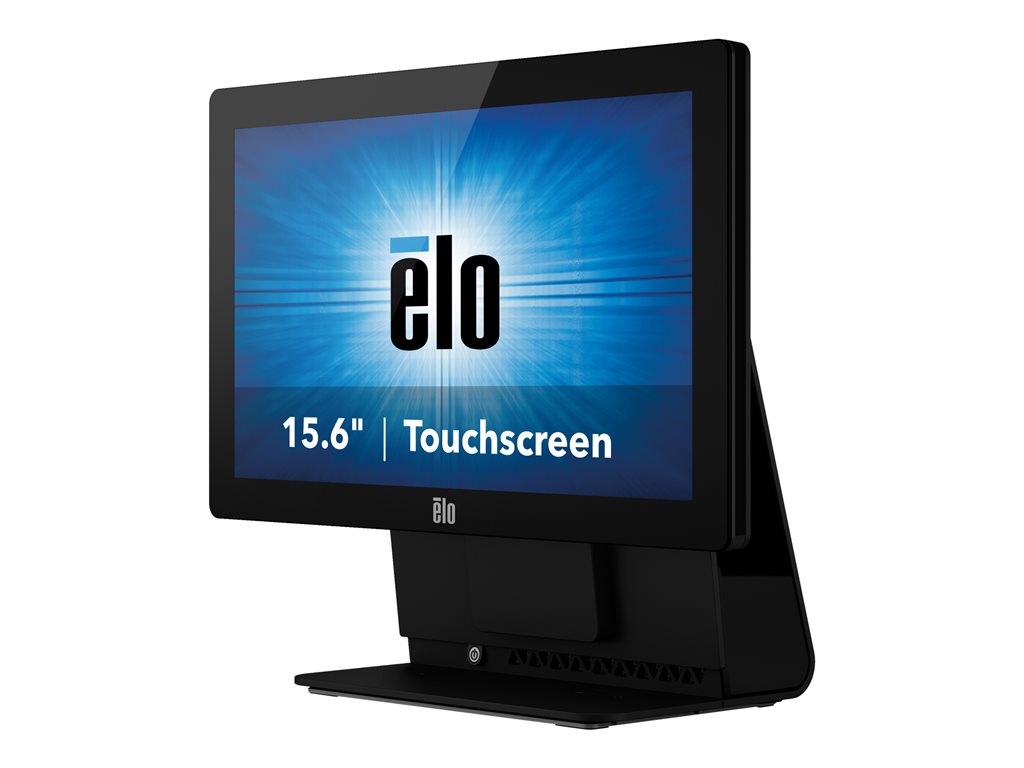

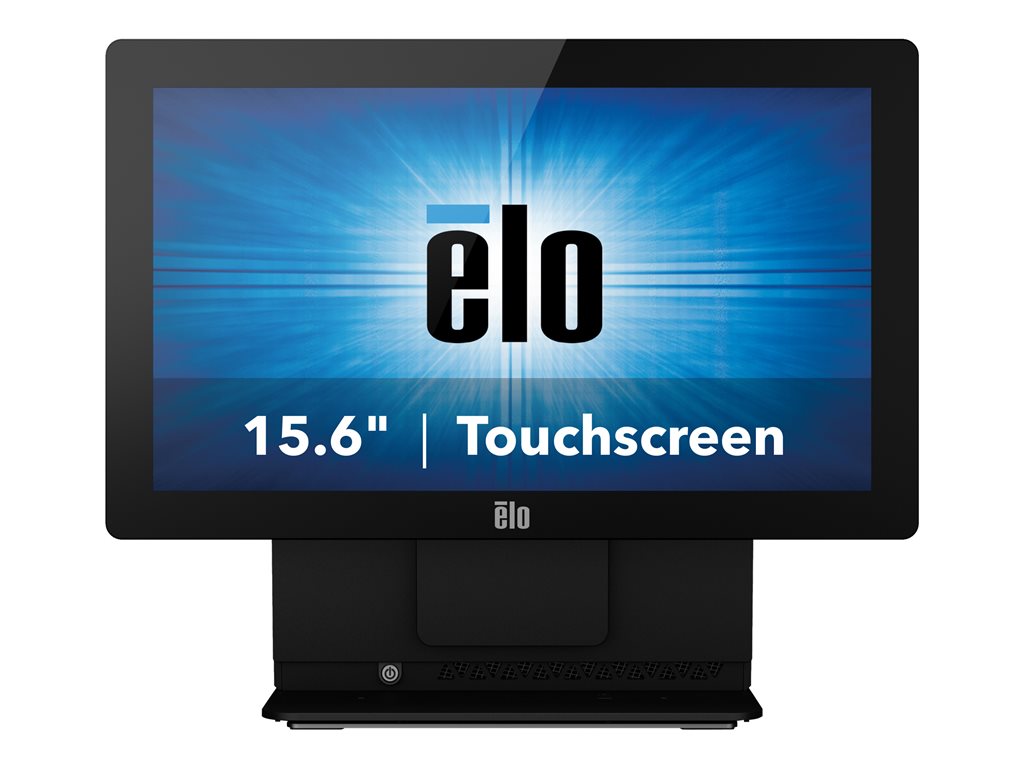

Elo Touch Solutions - Elo Touchcomputer 15E2
Kiosk - 1 x Celeron J1900 / 2 GHz - RAM 4 GB - SSD 128 GB - HD Graphics - GigE - no OS - monitor: LED 15.6" 1366 x 768 (HD) touchscreen - black
Elo Touch Solutions
E732416
N/A
0845335022521
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Elo Touchcomputer 15E2 - kiosk - Celeron J1900 2 GHz - 4 GB - SSD 128 GB - LED 15.6" |
| Type | Kiosk - kiosk |
| Localization | Region: Worldwide |
| Processor | 1 x Intel Celeron J1900 / 2 GHz (, up to 2.42 GHz, (Quad-Core) |
| Cache Memory | 2 MB L2 cache |
| Cache Per Processor | 2 MB |
| RAM | 4 GB (installed) / 4 GB (max) - DDR3L SDRAM |
| Storage Controller | SATA |
| Hard Drive | SSD 128 GB - SATA 3Gb/s |
| Optical Storage | No optical drive |
| Monitor | 15.6" - LED - 1366 x 768 (HD) - 16:9 - touchscreen |
| Graphics Controller | Intel HD Graphics Dynamic Video Memory Technology 5.0 |
| Networking | GigE |
| Power | AC 120/230 V (50/60 Hz) |
| OS Provided | No operating system |
| Color | Black |
| Dimensions (WxDxH) | 15.4 in x 9.4 in x 11 in |
| Weight | 10.36 lbs |
| Manufacturer Warranty | Limited warranty - 3 years |
| General | |
| Type | Kiosk |
| Product Form Factor | Kiosk |
| Color | Black |
| Localization | Region: Worldwide |
| Expansion / Connectivity | |
| Bays | 1 (total) / 0 (free) x internal 2.5" |
| Interfaces | 4 x USB 2.0 ¦ 2 x serial ¦ 1 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x VGA output ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Compliant Standards | UL, TUV, VCCI, BSMI, cUL, CB, CCC, FCC, SII, S Mark, KC, RCM, CoC |
| RAM | |
| Installed Size | 4 GB / 4 GB (max) |
| Technology | DDR3L SDRAM |
| Slots | 1 (total) / 0 (empty) |
| Configuration Features | 1 x 4 GB |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Power | |
| Device Type | Power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 65 Watt |
| Power Consumption Operational | 29 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| Storage Controller | |
| Type | SATA |
| Cache Memory | |
| Installed Size | L2 cache - 2 MB |
| Cache Per Processor | 2 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | LED |
| Touchscreen | Yes |
| Diagonal Size | 15.6" |
| Native Resolution | 1366 x 768 (HD) |
| Widescreen Display | Yes |
| Image Aspect Ratio | 16:9 |
| Horizontal Viewing Angle | +45 / -45 |
| Vertical Viewing Angle | +20 / -45 |
| Response Time | 10 ms |
| Image Brightness | 198 cd/m² |
| Image Contrast Ratio | 600:1 |
| Monitor Features | Zero-Bezel Design, iTouch |
| Graphics Controller | |
| Graphics Processor | Intel HD Graphics Dynamic Video Memory Technology 5.0 |
| Video Interfaces | VGA |
| Operating System / Software | |
| OS Provided | No operating system |
| Hard Drive | |
| Type | SSD |
| Capacity | 1 x 128 GB |
| Interface Type | SATA 3Gb/s |
| Dimensions & Weight | |
| Width | 15.4 in |
| Depth | 9.4 in |
| Height | 11 in |
| Weight | 10.36 lbs |
| Processor / Chipset | |
| CPU | Intel Celeron J1900 |
| Clock Speed | 2 GHz |
| Max Turbo Speed | 2.42 GHz |
| Number of Cores | Quad-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
